AGM Clarion 384
AGM Clarion 384
384 × 288 · 25/50 mm dual lens · NETD < 20 mK · up to 2,600 m detection
Couldn't load pickup availability

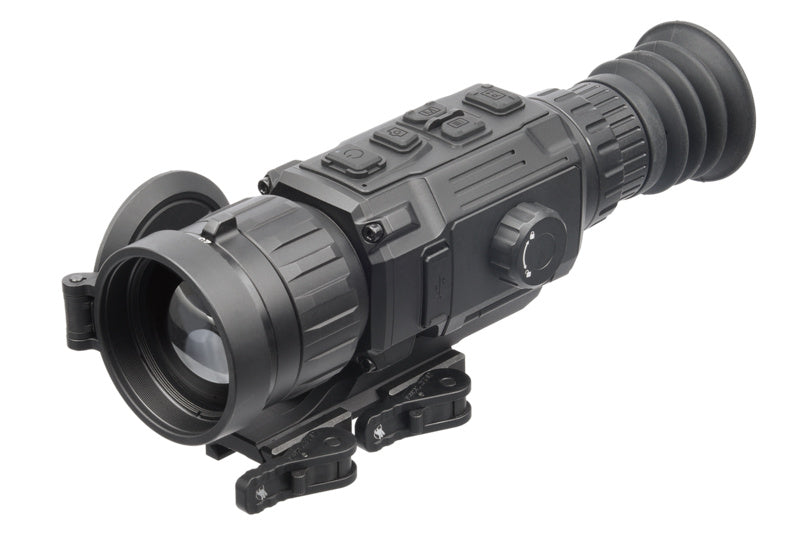

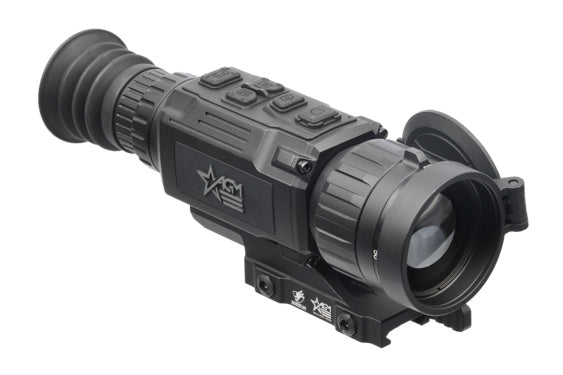

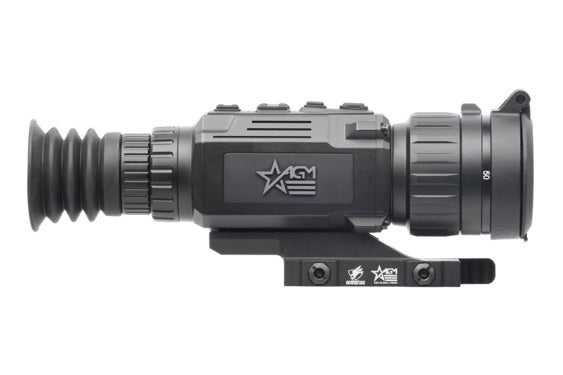

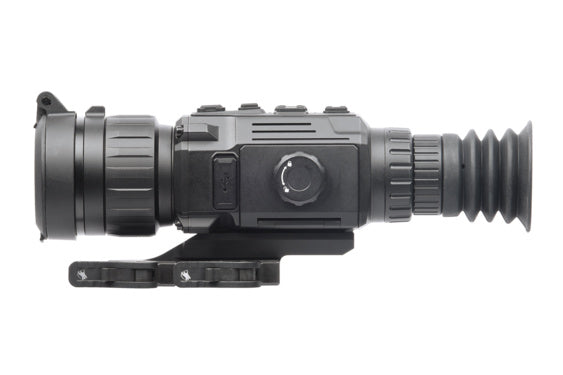

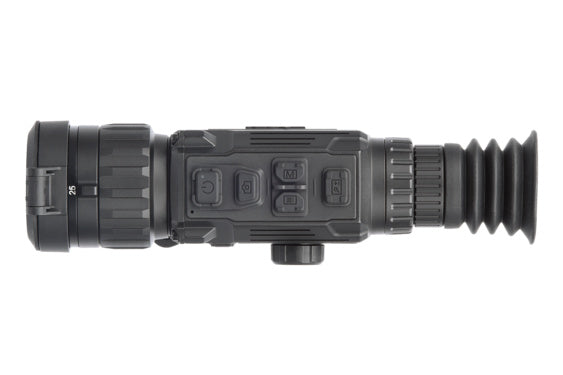

The AGM Clarion 384 is a thermal riflescope with two lenses in one housing, for hunting and night observation. It has a 12 µm VOx sensor (384 × 288, NETD below 20 mK) and a 1024 × 768 OLED display. You switch between a 25 mm lens for a wide view and a 50 mm lens for long range (up to 2,600 m), so one scope covers both close and far targets.
Specifications
Specifications
| Detector | 12 µm VOx, uncooled, 384 × 288 |
| NETD | < 20 mK |
| Refresh rate | 50 Hz |
| Lens | 25 mm F/0.8 and 50 mm F/1.0, switchable |
| Magnification | 2–16× (25 mm), 4.5–36× (50 mm) |
| Field of view | 10.5° × 7.9° (25 mm), 5.3° × 4.0° (50 mm) |
| Focus range | 4 m to infinity (25 mm), 10 m to infinity (50 mm) |
| Detection range (1.8 m target) | 1,200 m (25 mm), 2,600 m (50 mm) |
| Digital zoom | 1×, 2×, 4×, 8× |
| Display | 0.39" OLED, 1024 × 768 |
| Exit pupil | 6 mm |
| Eye relief | 45 mm |
| Diopter | -5 to +5 |
| Reticles | 10 types, 4 colours, on/off |
| Boresight | Digital |
| Palettes | Black hot, White hot, Red hot, Fusion |
| Scene modes | Cold, Warm |
| Recording | Photo and video with audio, shot-activated recording, picture-in-picture |
| Storage | 16 GB built-in |
| Rangefinder | Stadiametric |
| Hot track | Yes |
| Connectivity | Wi-Fi hotspot |
| Battery | Replaceable rechargeable Li-ion, 11 h or more (25 °C, hotspot off) |
| External power | USB-C, 5 V / 2 A |
| Max. recoil | 1000 g / 0.4 ms |
| Protection | IP67 |
| Operating temperature | -30 °C to +55 °C |
| Weight (no mount, no battery) | 0.75 kg |
| Dimensions (no mount) | 241 × 73 × 67 mm |
Compatible with
Compatible with
- AGM-2123 ADM QR mount (included)

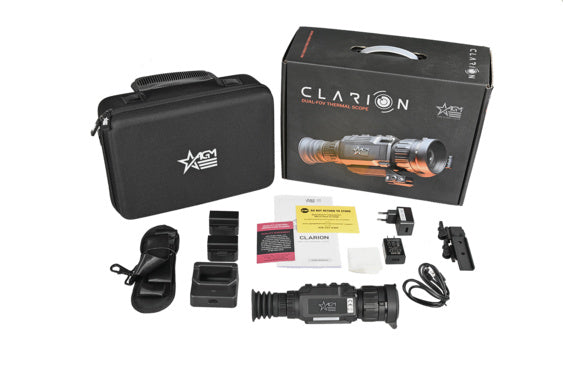

In the box
In the box
- Clarion 384 thermal riflescope
- AGM-2123 ADM QR mount
- 2 rechargeable batteries and charger
- USB cable
- Lens cloth
- User manual

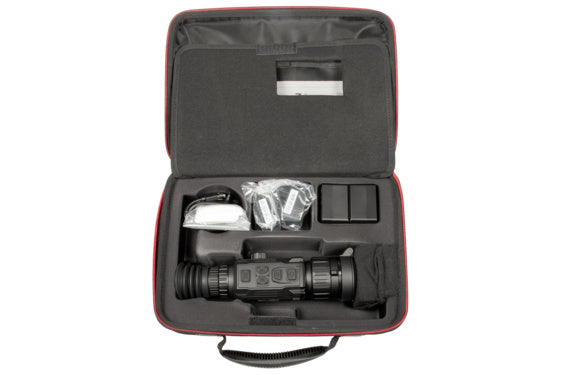

- Carrying case
FAQ
FAQ
How does the dual lens work?
The scope has a 25 mm and a 50 mm lens. You switch between them mechanically. Use the 25 mm lens to scan a wide area and the 50 mm lens to look at distant targets.
Is a mount included?
Yes. An AGM-2123 ADM quick-release mount is in the box.
Does it have a laser rangefinder?
No. It measures distance with a stadiametric rangefinder in the display.
How long does the battery last?
11 hours or more at 25 °C with the hotspot off. Two replaceable batteries are included, and you can run it from USB-C power.
