AGM NVG-40 NL1
AGM NVG-40 NL1
2 × Gen 2+ NL1 tubes · FOM 1400–1500 · 40° FOV · 20 h on 1 AA
Couldn't load pickup availability

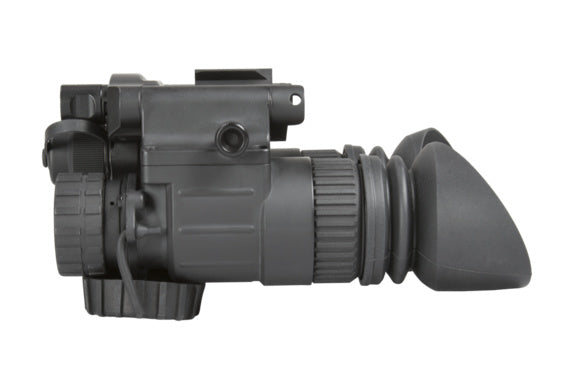

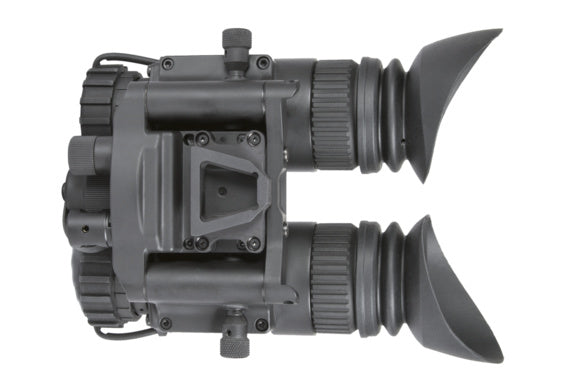

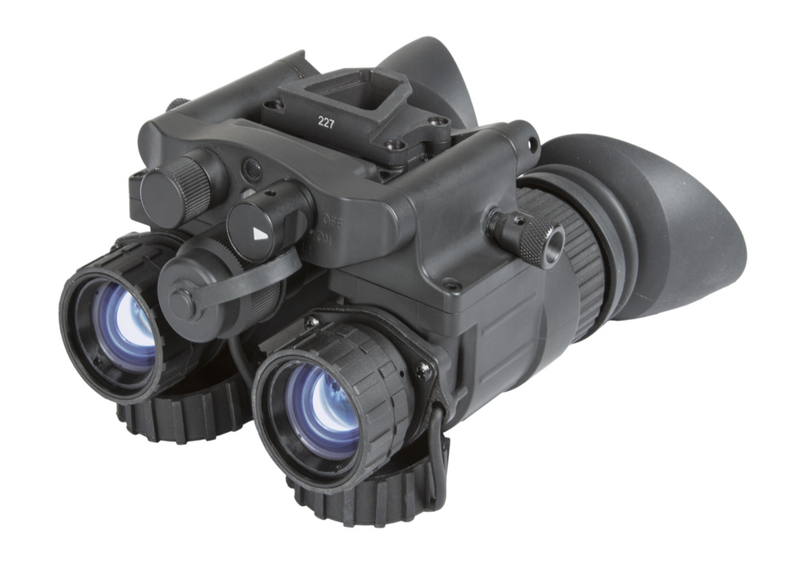

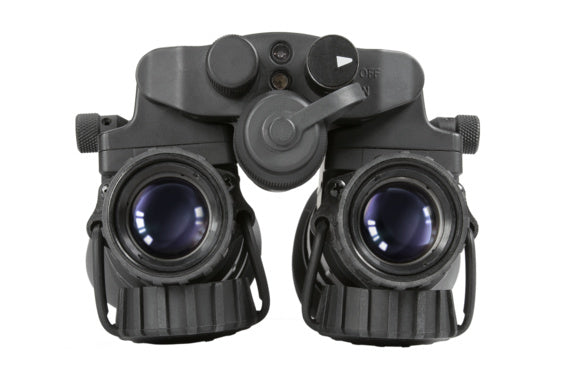

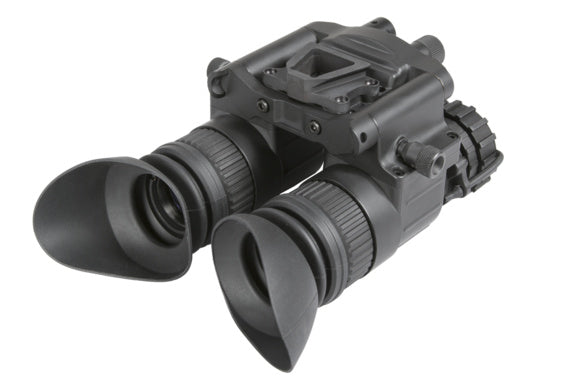

The AGM NVG-40 NL1 is a dual-tube night vision goggle for head-mounted or handheld use. It has two Gen 2+ NL1 green phosphor tubes (FOM 1400–1500) and a 40° field of view. Each eye has its own tube, which gives natural depth perception when you walk or drive at night.
Specifications
Specifications
| Image intensifier tubes | 2 × Gen 2+ NL1, Level 1, green phosphor |
| Resolution | 61–64 lp/mm |
| FOM | 1400–1500 |
| Magnification | 1× |
| Lens | 27 mm, F/1.3 |
| Field of view | 40° |
| Focus range | 0.25 m to infinity |
| Diopter | -6 to +2 |
| Eye relief | 25 mm |
| Interpupillary distance | 56–72 mm |
| Manual gain control | Yes |
| Bright light cut-off | Yes |
| Automatic shut-off | Yes |
| IR illuminator | Built-in |
| LED indicators in view | Low battery, IR on, excessive light |
| Battery | 1 × CR123A (3 V) or 1 × AA (1.5 V) |
| Battery life | Up to 20 h at 20 °C (up to 80 h with optional battery pack) |
| Operating temperature | -40 °C to +50 °C |
| Storage temperature | -50 °C to +70 °C |
| Dimensions | 115 × 118 × 74 mm |
| Weight | 645 g |
Compatible with
Compatible with
- Helmet mounts with a bayonet/horn interface (interface shoe included)
- AGM Goggle Kit W G50 (sold separately)
- AGM A-focal G50 magnifier lens kit (sold separately)
- AGM soft headgear with shroud plate (sold separately)
- AGM Sioux850 and Sioux940 IR illuminators (sold separately)
In the box
In the box
- NVG-40 NL1 goggle
- Mounting bracket with NVG interface shoe (fitted)
- Bayonet/horn interface shoe
- 2 demist shields
- 2 sacrificial windows
- Lithium battery and CR123A/AA battery adapter
- Soft carrying case
- Lens tissue
- User manual
FAQ
FAQ
What does NL1 mean?
NL1 is AGM's Gen 2+ Level 1 tube with green phosphor. It has a resolution of 61–64 lp/mm and a FOM of 1400–1500.
Why two tubes?
Each eye has its own image intensifier. This gives better depth perception than a single-tube monocular, for example when walking over rough ground.
Which batteries does it use?
One CR123A or one AA battery. It runs up to 20 hours at 20 °C. An optional battery pack extends this to up to 80 hours.
Can I mount it on a helmet?
Yes. It comes with a mounting bracket and a bayonet/horn interface shoe for helmet mounts.
