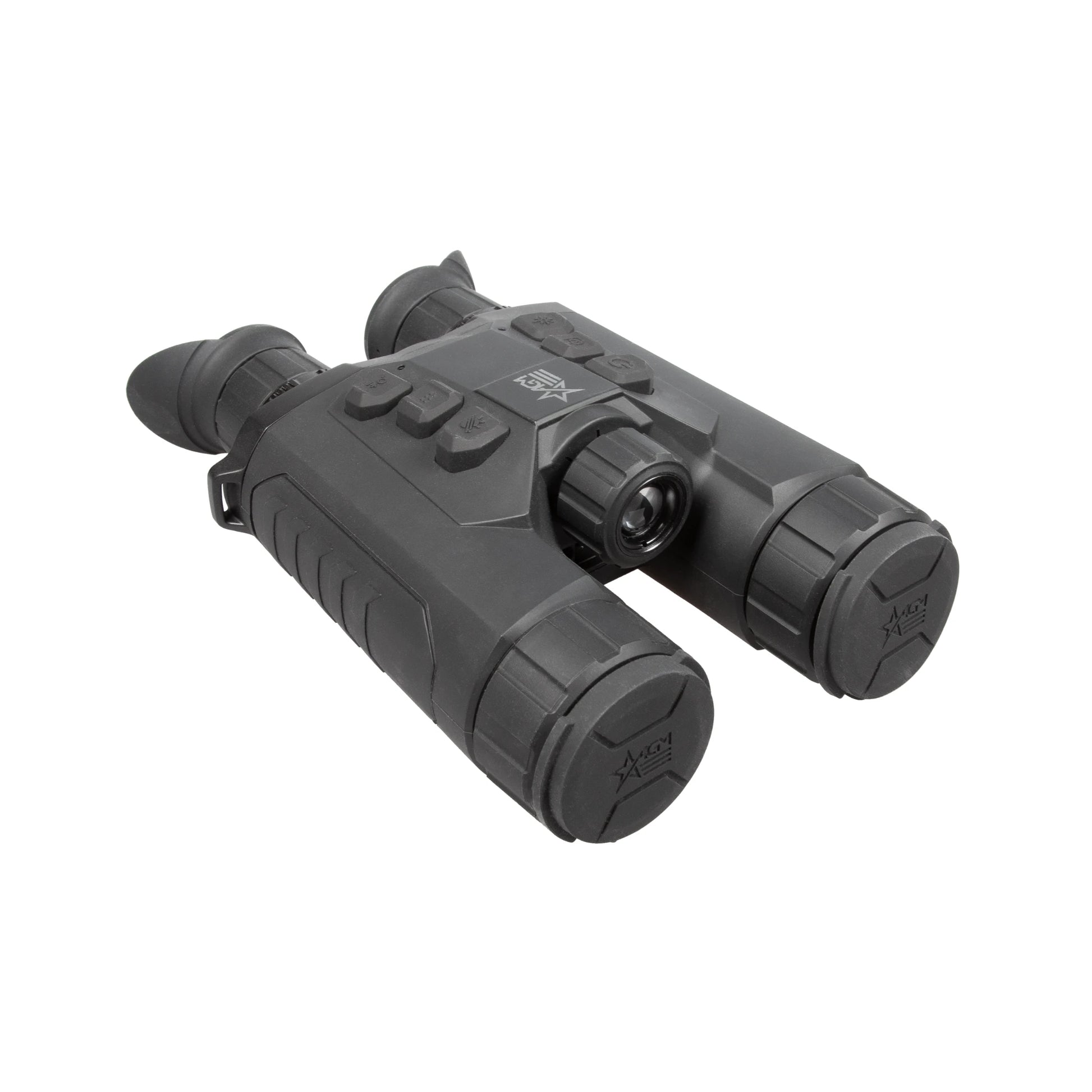

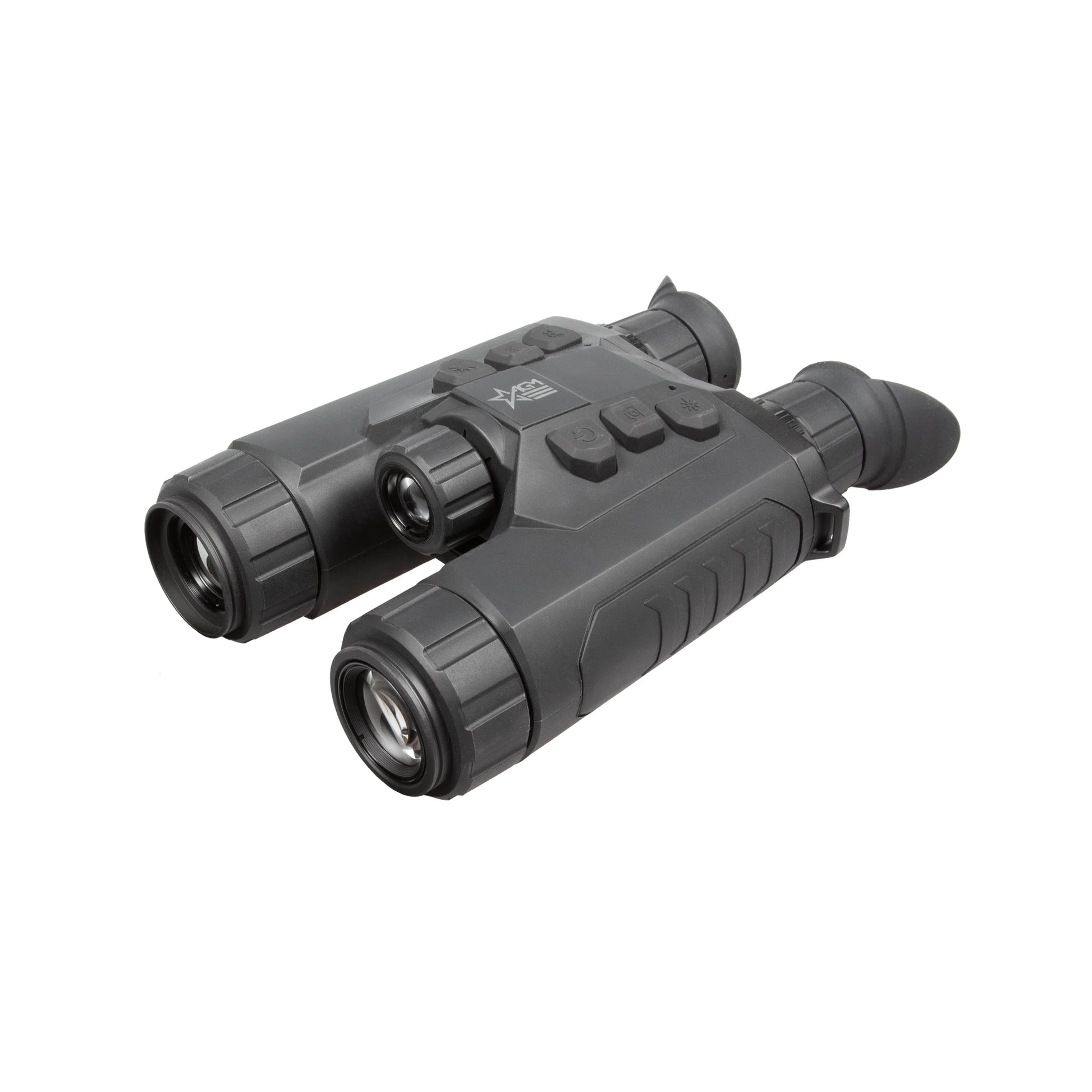

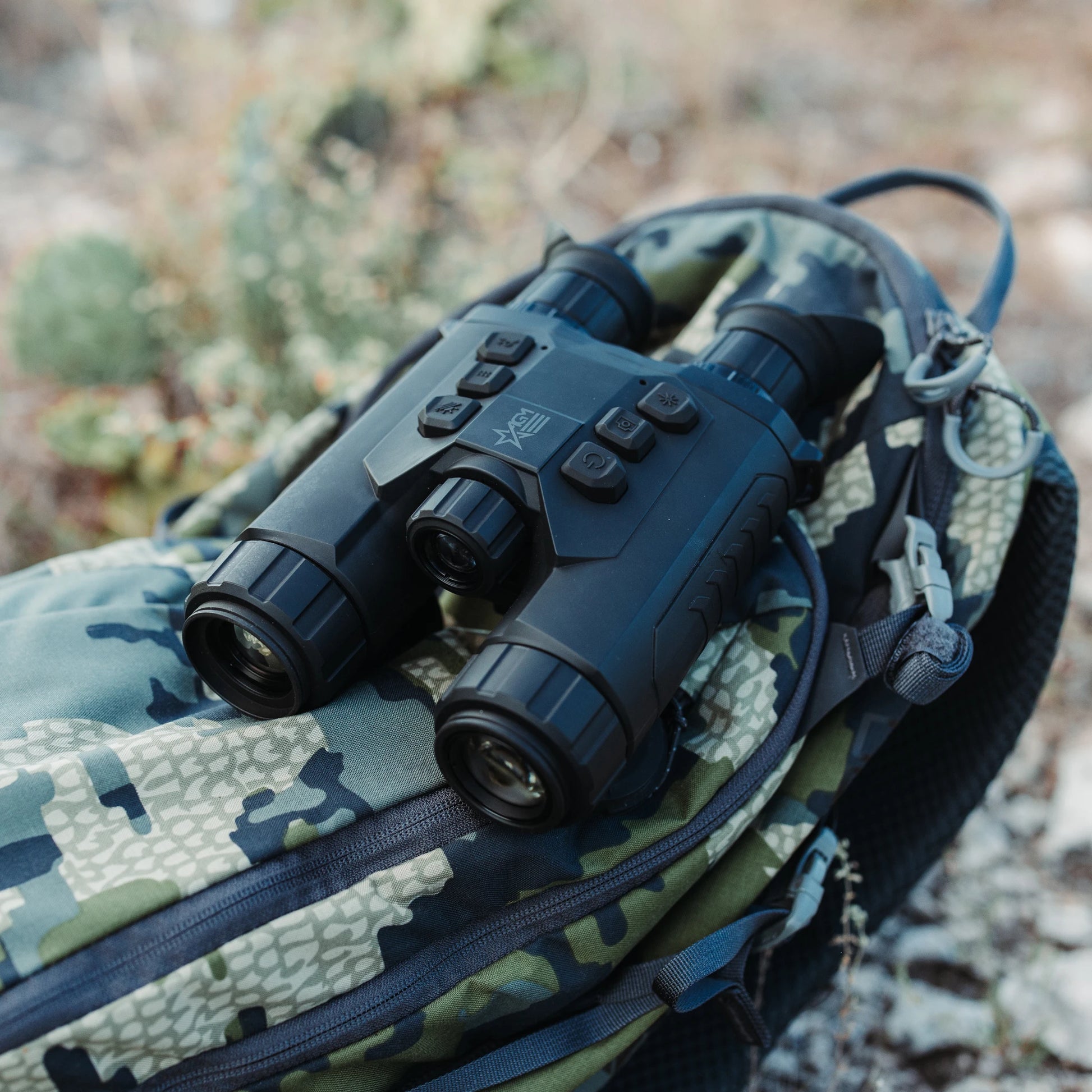

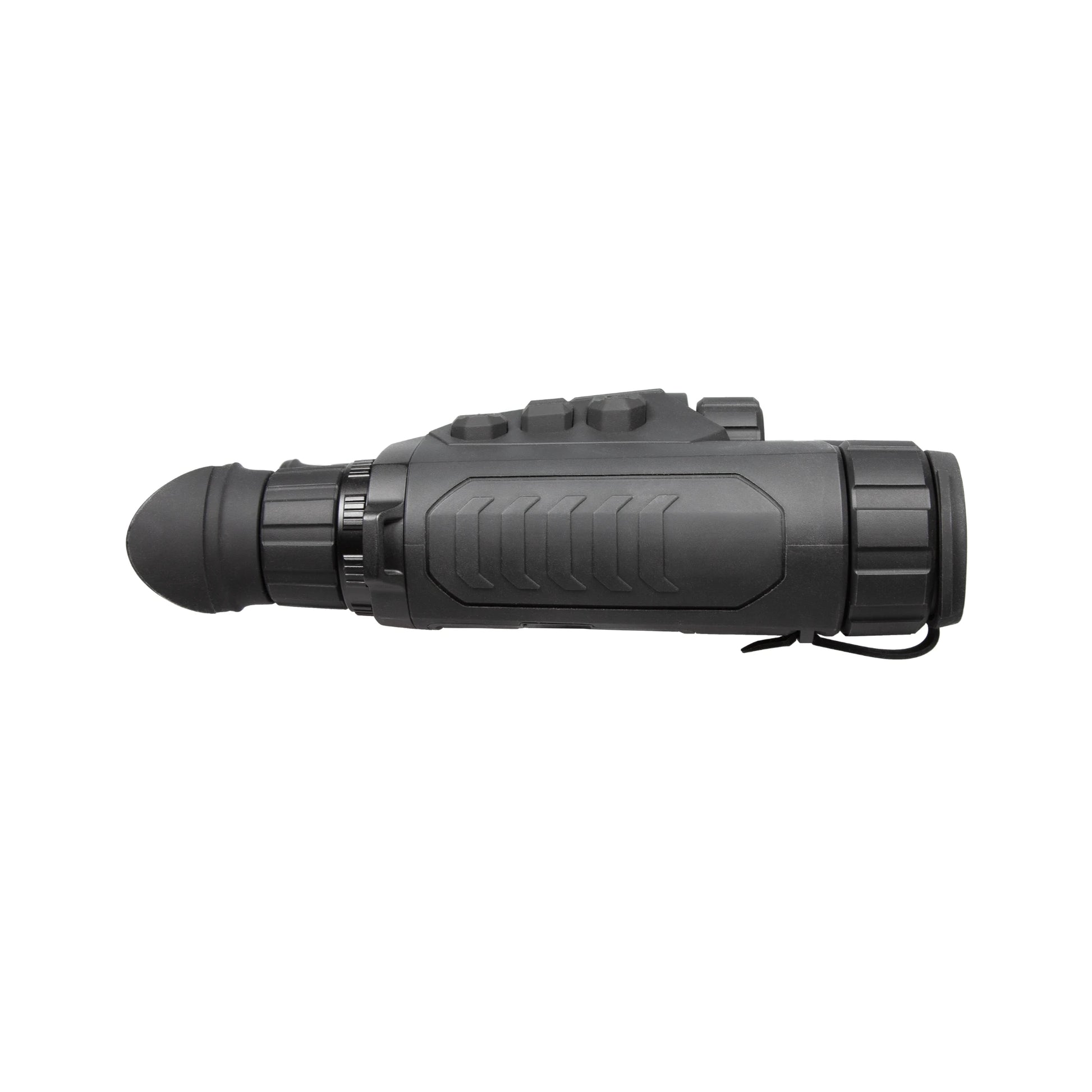

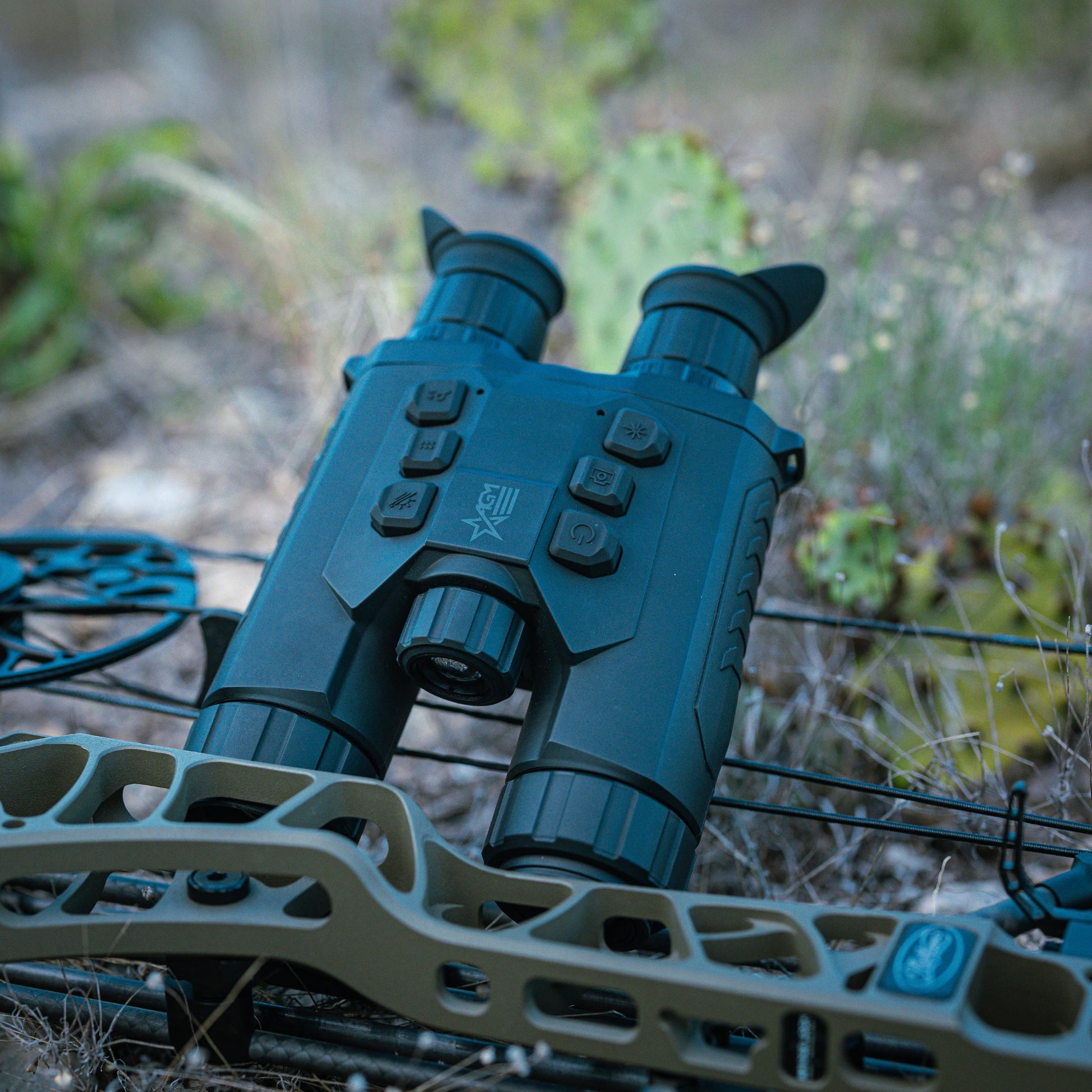

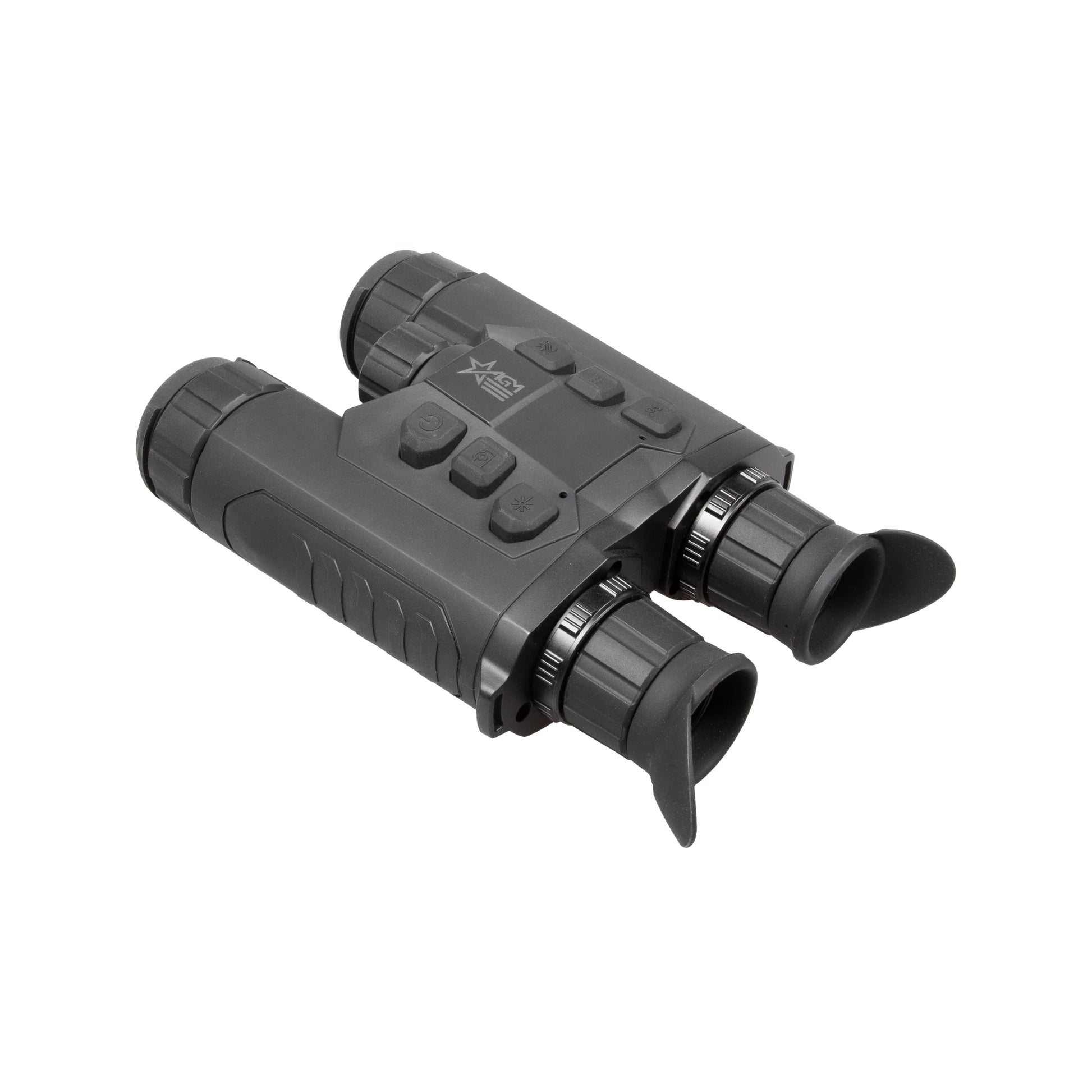

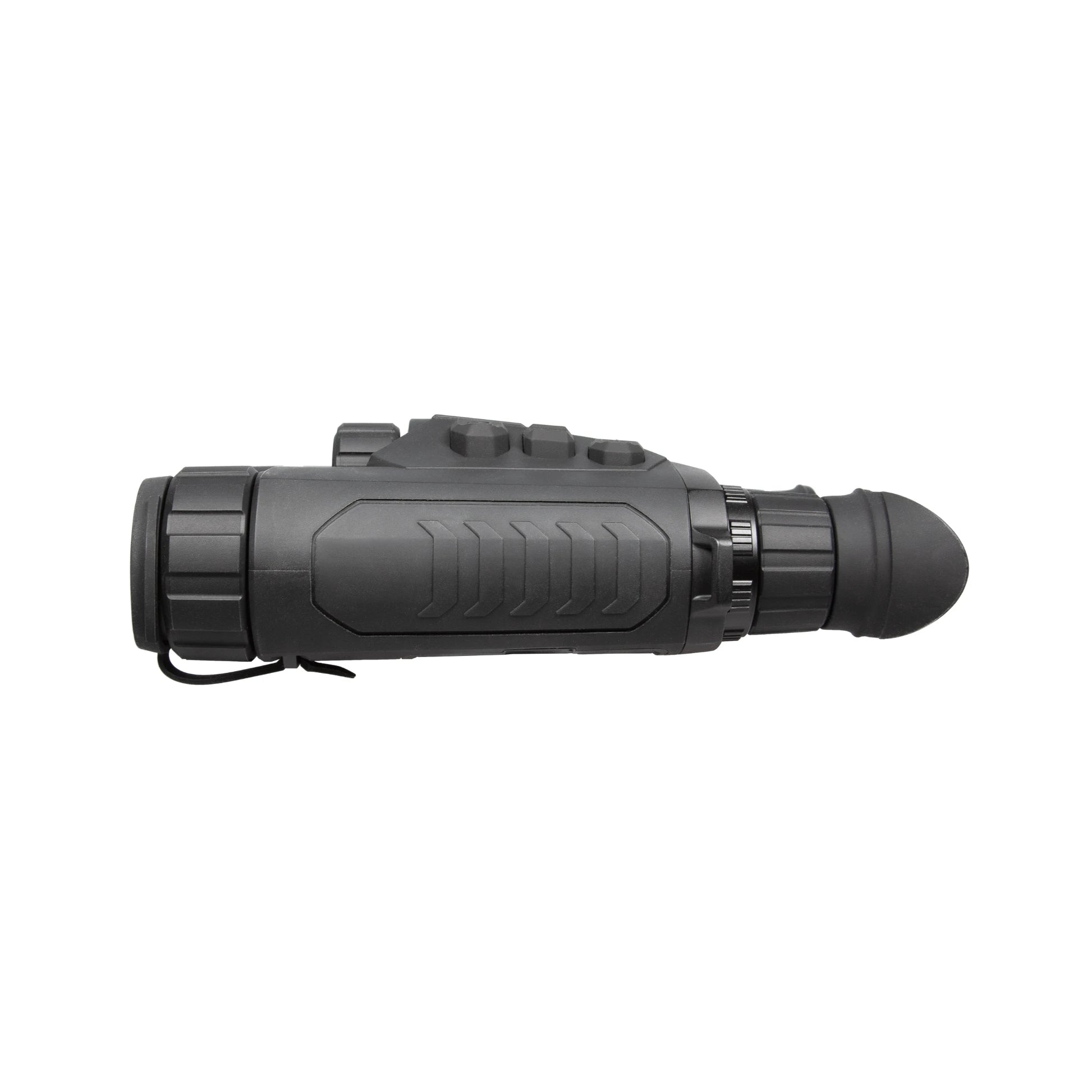

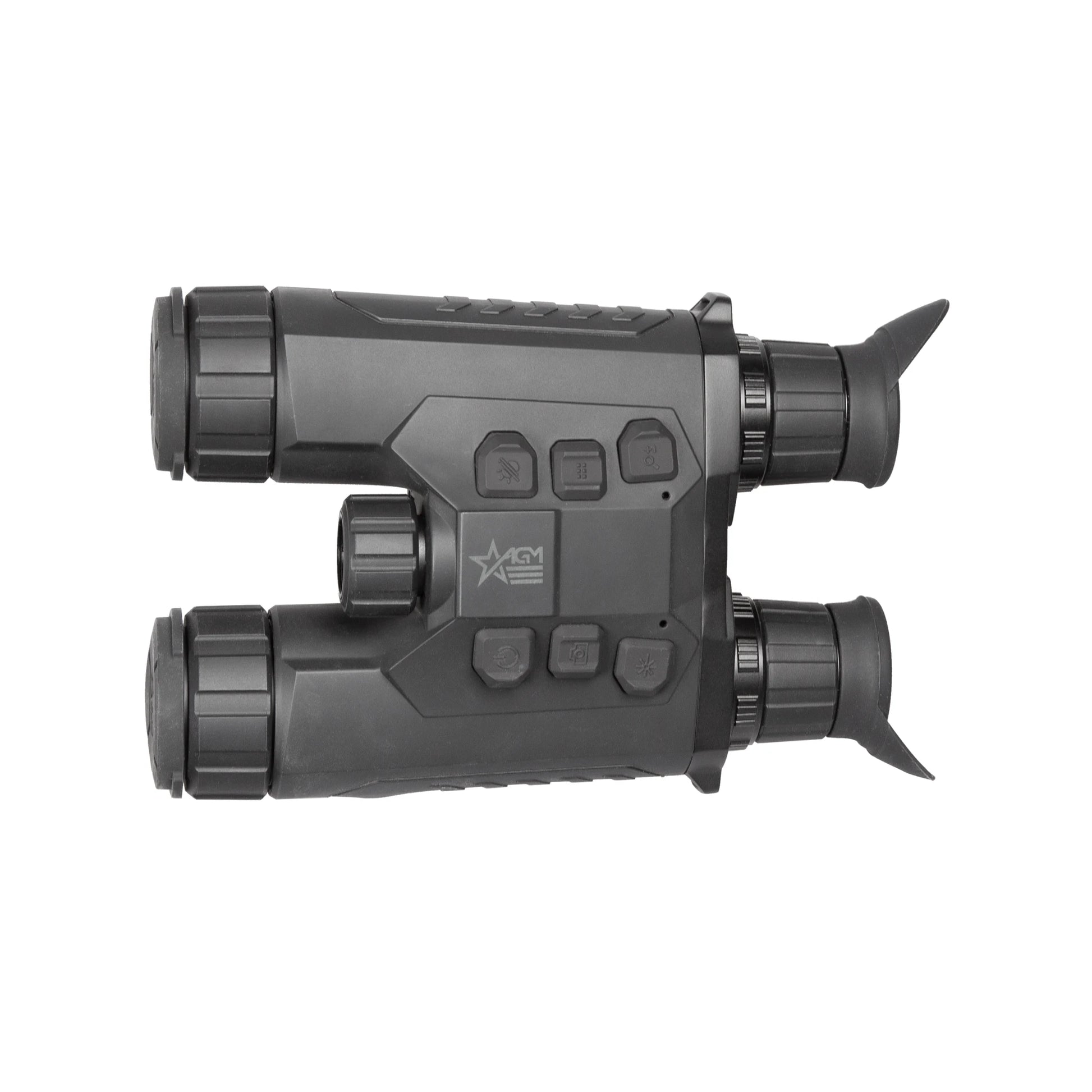

AGM ObservIR LRF 25-256 Thermal & Digital Day/Night Binoculars
Dual-spectrum performance. Integrated rangefinding. Mission-grade clarity.
The AGM ObservIR LRF 25-256 combines a thermal imaging sensor and digital optical channel into one compact, field-ready system. Designed for observation, reconnaissance, and perimeter security, it delivers rapid target detection, ranging accuracy, and reliable identification day or night.
Key Features:
- Dual-Spectrum System: Thermal + digital day/night channels for 24-hour capability.
- High-Sensitivity Thermal Sensor: 12 μm uncooled detector (256 × 192 resolution, NETD < 35 mK).
- Digital Optical Channel: 3840 × 2160 CMOS sensor with built-in IR illuminator.
- Laser Rangefinder: Eye-safe Class 1 laser measures targets to 1 000 m (±1 m accuracy).
- Multiple Zoom Levels: 1× / 2× / 4× digital zoom with picture-in-picture mode.
- Recording & Storage: Video, audio and image capture to 64 GB internal memory.
- Positioning & Navigation: Built-in GPS module and digital magnetic compass.
- Wireless Connectivity: Wi-Fi hotspot for remote view and data transfer.
- Power System: Two replaceable Li-ion 18650 batteries for up to 8 hours operation; USB-C external power support.
- Environmental Resilience: IP67 waterproof and dustproof housing (0.89 kg).
- Warranty: 5 years.
Configuration Options:
▶ Model Configuration (click to expand)
The ObservIR LRF 25-256 is offered as a single, full-spec model featuring both thermal and digital channels with integrated laser rangefinder and GPS. No optional sub-variants apply.
▶ SPECS (click to expand)
- Thermal Sensor: 12 μm uncooled FPA, 256 × 192 resolution
- Thermal Refresh Rate: 50 Hz
- Thermal Lens: 25 mm F/1.0
- Thermal FOV: 7.0° × 5.3° | Detection Range 1 200 m (1.8 m target)
- Optical Channel Sensor: 3840 × 2160 CMOS (1/1.8")
- Optical Magnification: 5.5× – 22× digital zoom
- Display: 0.49″ OLED 1920 × 1080 @ 50 fps
- Rangefinder: 1 000 m (±1 m) | Class 1 laser 905 nm
- IR Illuminator: 850 nm Smart IR with power & beam adjustment
- Compass / GPS: Digital magnetic compass and integrated GPS module
- Storage: 64 GB internal EMMC
- Battery Type: 2 × Li-ion 18650 (replaceable / rechargeable)
- Battery Life: Up to 8 hours (@ 25 °C, Wi-Fi, IR and LRF off)
- Power Input: 5 V DC (USB Type-C) / external supply supported
- Operating Temperature: –30 °C to +55 °C
- Protection Level: IP67 (waterproof)
- Dimensions: 221 × 142 × 71 mm (8.7 × 5.6 × 2.8 in)
- Weight: 0.89 kg (1.96 lb)
▶ INCLUDED ACCESSORIES (click to expand)
- ObservIR LRF 25-256 Binoculars
- 2 × Rechargeable Li-ion Battery Packs
- Wrist strap and tripod adapter
- Battery charger and USB Type-C cable
- Soft carrying case and lens cloth
- User manual
Delivery: Usually dispatched within 1 week of order confirmation.
Note: Equipment may be subject to export regulations. Confirm compliance before purchase or shipment.
Observe further. Range faster. Operate smarter.
