AGM PVS-14L NL1
AGM PVS-14L NL1
Gen 2+ NL1 tube · FOM 1400–1500 · 40° FOV · 280 g · 50 h on 1 AA
Regular price
€2.299,00 EUR
Regular price
RRP
€2.528,90 EUR
Sale price
€2.299,00 EUR
-9%
Unit price
/
per
Taxes included.
Couldn't load pickup availability
Authorised AGM Global Vision dealer
Ships from the Netherlands
3-year AGM limited warranty (Europe)

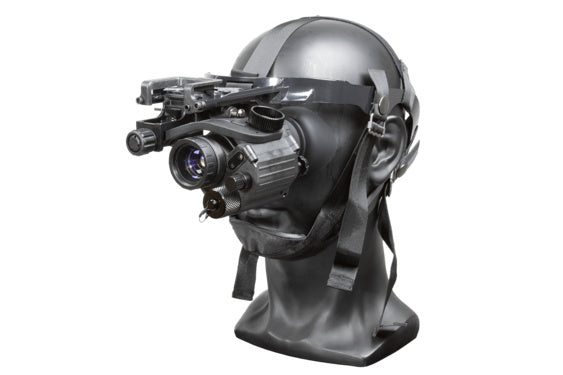

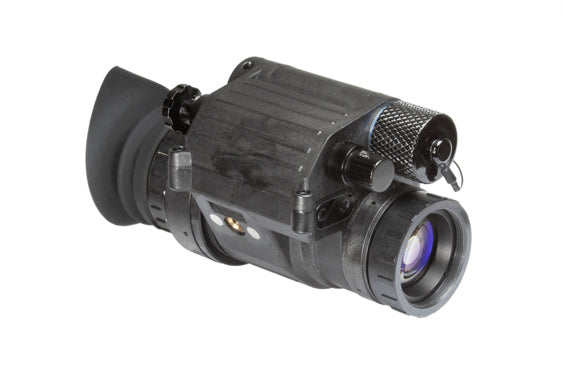

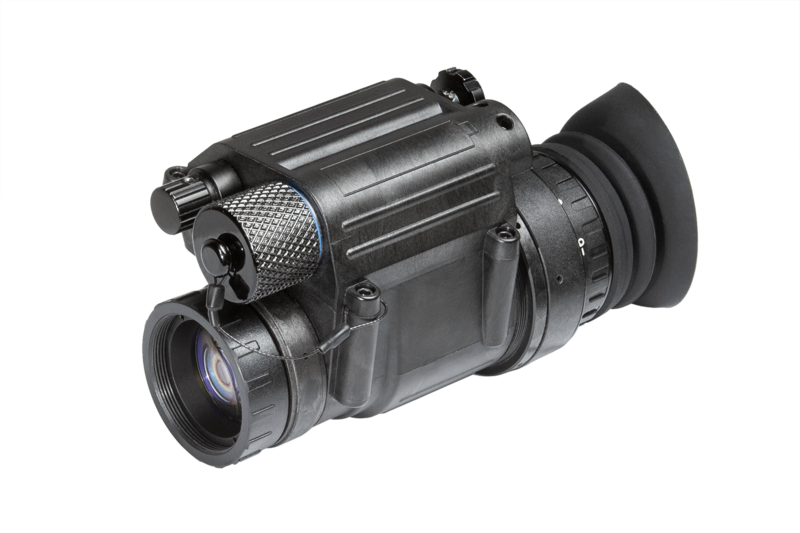

The AGM PVS-14L NL1 is a lightweight night vision monocular on the PVS-14 platform, for handheld or head-mounted use. It has a Gen 2+ NL1 green phosphor tube (FOM 1400–1500) and a 40° field of view. At 280 g it is light enough to wear on a helmet for long periods, and one AA battery lasts up to 50 hours.
Specifications
Specifications
| Image intensifier tube | Gen 2+ NL1, Level 1, green phosphor |
| Resolution | 61–64 lp/mm |
| FOM | 1400–1500 |
| Magnification | 1× |
| Lens | 26 mm, F/1.2 |
| Field of view | 40° |
| Focus range | 0.25 m to infinity |
| Diopter | -6 to +2 |
| Manual gain control | Yes |
| Bright light cut-off | Yes |
| IR illuminator | Built-in |
| LED indicators in view | Low battery, IR on, excessive light |
| Battery | 1 × AA alkaline, up to 50 h at 20 °C |
| Operating temperature | -51 °C to +49 °C |
| Storage temperature | -51 °C to +85 °C |
| Dimensions (no lens cap, no eyecup) | 108 × 63 × 69 mm |
| Weight | 280 g |
Compatible with
Compatible with
- Helmet and head mounts, with the J-arm adapter (included)
- AGM soft headgear (sold separately)
- AGM 3× and 5× afocal magnifiers (sold separately)
- AGM 51° FOV lens kit (sold separately)
- AGM Sioux TH 850 and Sioux TH 940 IR illuminators (sold separately)
- AGM amber filter and AGM night vision recorder (sold separately)

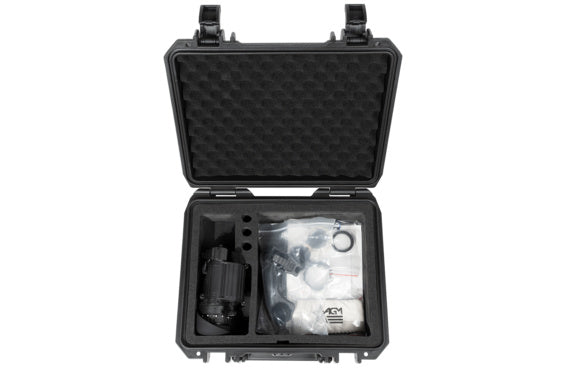

In the box
In the box
- PVS-14L NL1 monocular
- J-arm head mount adapter
- Eye cup
- Daylight filter
- Sacrificial window
- Demist shield
- AA battery
- Lens cloth
- Manual
- Hard case
FAQ
FAQ
How light is it?
280 g. This makes it easier to wear on a helmet for a long time than a standard PVS-14.
What does NL1 mean?
NL1 is AGM's Gen 2+ Level 1 tube with green phosphor. It has a resolution of 61–64 lp/mm and a FOM of 1400–1500.
How long does the battery last?
Up to 50 hours on one AA battery at 20 °C.
Can I add magnification?
Yes. AGM offers 3× and 5× afocal magnifiers for this monocular, sold separately.
