AGM Global Vision
AGM PVS-7 NL1
AGM PVS-7 NL1
Gen 2+ NL1 tube, green phosphor · 1×, 40° field of view · up to 60 h on AA · 0.48 kg
Couldn't load pickup availability

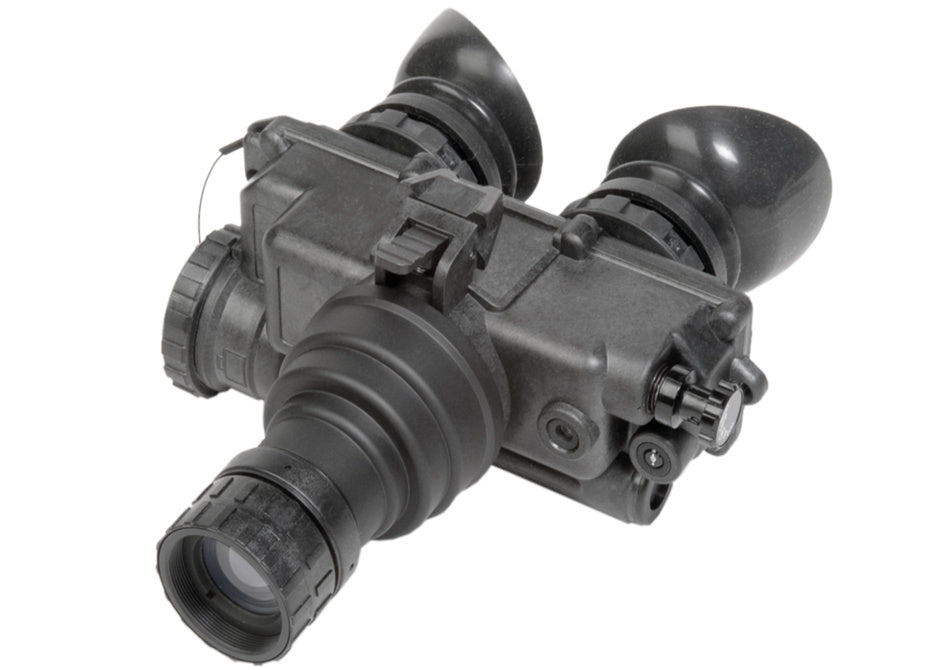

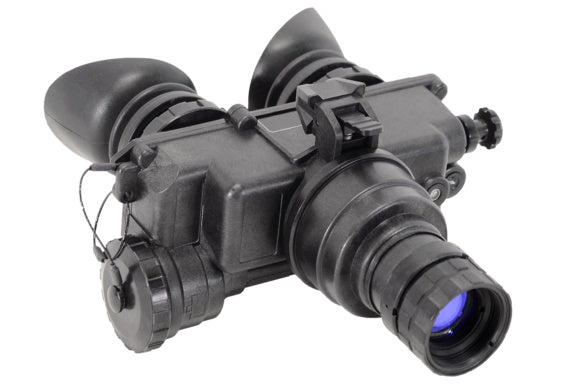

The AGM PVS-7 NL1 is a head-mounted night vision goggle for hands-free navigation and observation at night. One Gen 2+ NL1 image intensifier tube with green phosphor feeds two eyepieces, so you look with both eyes at 1× magnification. Automatic brightness control and a bright-light cut-off protect the tube when the light changes suddenly.
Typical uses
- Night navigation and walking in the dark
- Camping and outdoor activities
- Hunting and wildlife observation
- Checks of property and land at night
Specifications
Specifications
| Image intensifier tube | Gen 2+ NL1, Level 1, green phosphor |
| Resolution | 61–64 lp/mm |
| Magnification | 1× |
| Field of view | 40° |
| Objective lens | 27 mm, F/1.2 |
| Focus range | 0.2 m to infinity |
| Interpupillary distance | 55–71 mm |
| Diopter | -6 to +2 dpt |
| IR illuminator | Built-in |
| Light protection | Automatic brightness control, bright-light cut-off |
| LED indicators | Low battery, IR on, too much light |
| Automatic shut-off | Yes |
| Power | 2 × AA alkaline or 1 × lithium BA-5567/U |
| Battery life | Up to 60 hours at 20 °C |
| Operating temperature | -40 °C to +50 °C |
| Storage temperature | -50 °C to +70 °C |
| Weight | 0.48 kg without batteries; 0.68 kg with head mount and batteries |
| Dimensions | 162 × 152 × 76 mm |
Compatible with
Compatible with
- AGM soft headgear with shroud mounting plate, part 6135SHS1 (sold separately)
- AGM 3× and 5× afocal magnifier lenses (sold separately)
- AGM 8× lens for PVS-7 (sold separately)
- AGM Sioux850 and Sioux940 long-range IR illuminator kits (sold separately)
- AGM Hard Case (sold separately)
In the box
In the box
- PVS-7 NL1 night vision goggle
- Head mount assembly
- Soft carrying case
- Neck lanyard
- Sacrificial window
- Demist shields
- Lens tissue
- User manual
- Packing box
FAQ
FAQ
Is a head mount included?

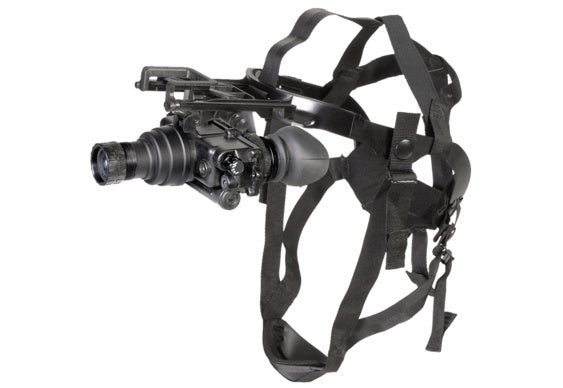

Yes. A head mount assembly is in the box, so you can wear the goggle hands-free.
Do I see with both eyes?
Yes. The PVS-7 has one image intensifier tube and two eyepieces. Both eyes see the same image at 1× magnification.
Which batteries does it use?
2 × AA alkaline batteries or 1 × BA-5567/U lithium battery. Battery life is up to 60 hours at 20 °C.
Can I add magnification?
Yes. AGM offers 3× and 5× afocal magnifier lenses and an 8× lens for the PVS-7. They are sold separately.
Shipping, returns & warranty
Shipping, returns & warranty
- Delivery
- Usually dispatched within 1 week of order confirmation.
- Ships from
- Maasdijk, the Netherlands
- Returns
- 14 days to return the product (EU right of withdrawal). Return shipping is paid by the customer. Return policy
- Warranty
- 3-year AGM limited warranty (Europe)
- Manufacturer
- AGM Global Vision
- Your country's laws
- You are responsible for complying with the laws and regulations of your country when importing, owning or using this product.
- Export control
- This product may be subject to Regulation (EU) 2021/821 on the control of exports, brokering, technical assistance, transit and transfer of dual-use items.
