AGM Sidewinder
AGM Sidewinder
384 × 288, NETD ≤ 20 mK · 1024 × 768 OLED · up to 7 h battery · IP67
Couldn't load pickup availability

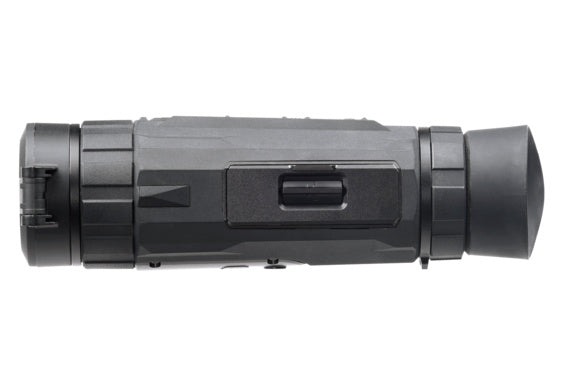

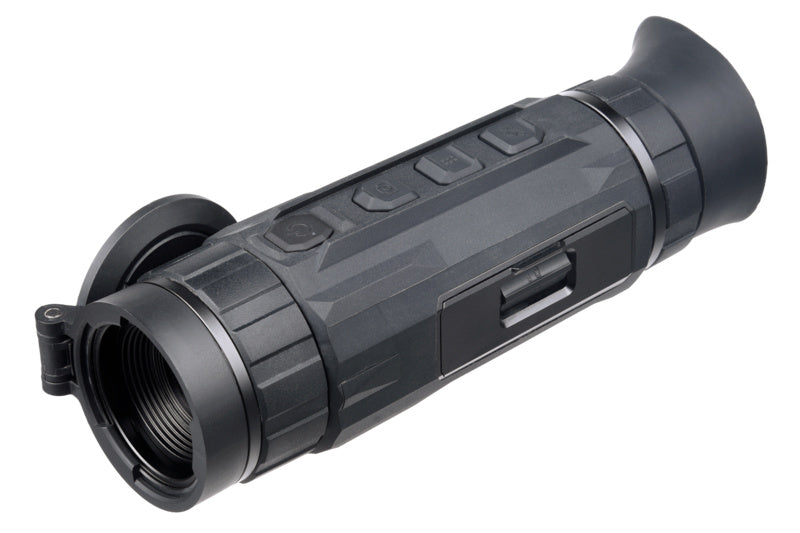

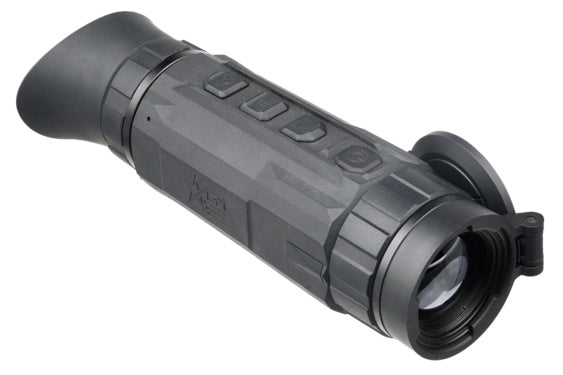

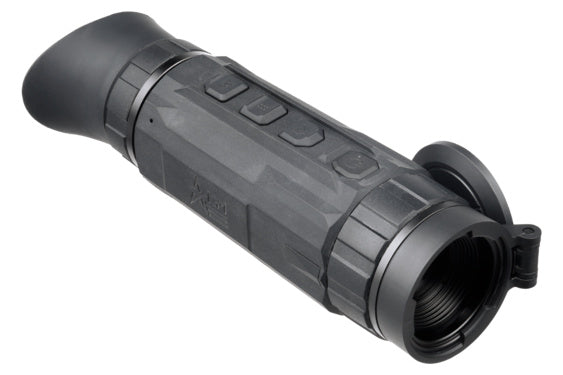

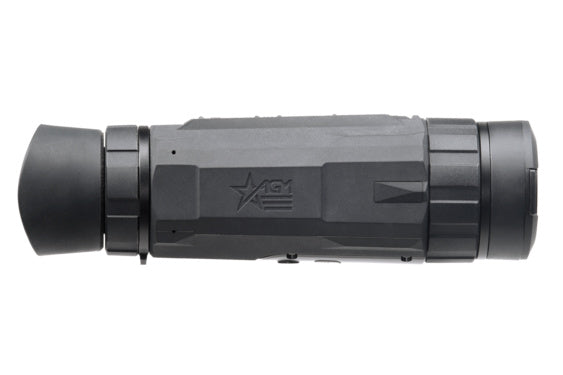

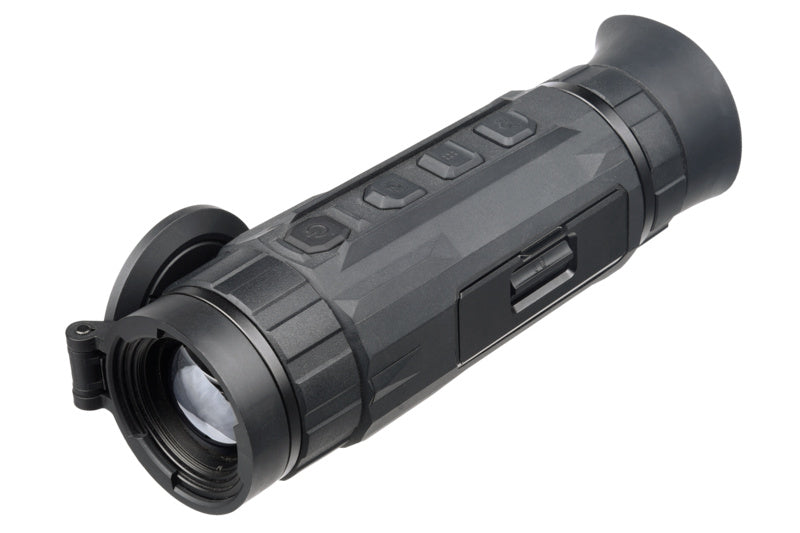

The AGM Sidewinder is a handheld thermal monocular for hunting, wildlife observation and scouting at night. It has a 384 × 288 sensor with 12 µm pixels and a sensitivity of 20 mK or better, shown on a sharp 1024 × 768 OLED display. One replaceable 18650 battery gives up to 7 hours of use, and you can carry a spare.
Specifications
Specifications
| TM25-384 | TM35-384 | |
|---|---|---|
| Lens | 25 mm, F1.0 | 35 mm, F1.0 |
| Field of view | 10.5° × 7.9° | 7.5° × 5.6° |
| Magnification | 2× – 16× | 3× – 24× |
| Detection range (1.8 m target) | 1,250 m | 1,800 m |
| Weight | 500 g | 505 g |
| Sensor | 384 × 288, 12 µm VOx, uncooled |
| NETD | ≤ 20 mK |
| Spectral range | 8–14 µm |
| Refresh rate | 50 Hz |
| Digital zoom | 1×, 2×, 4×, 8× |
| Diopter | -5 to +3 dpt |
| Display | OLED, 1024 × 768 |
| Palettes | Black Hot, White Hot, Red Hot, Fusion |
| Other functions | Image boost, hot spot tracking, Wi-Fi hotspot, standby mode |
| Recording | Video with audio and photos, 64 GB built-in |
| Power | 1 × replaceable 18650 rechargeable lithium battery |
| Battery life | Up to 7 hours |
| External power | 5 V / 2 A, USB-C |
| Protection | IP67 |
| Operating temperature | -30 °C to +55 °C |
| Dimensions | 188 × 58 × 65 mm |
Compatible with
Compatible with
- 18650 rechargeable lithium batteries
- External 5 V / 2 A power through USB-C
In the box
In the box
- Sidewinder thermal monocular
- 18650 rechargeable battery
- Battery charger
- Power adapter with EU and US plugs
- USB cable
- Wrist strap
- Lens cloth
- Carrying case
- Protective bag
- User manual
FAQ
FAQ
TM25-384 or TM35-384?
Both have the same sensor. The TM25-384 has a wider field of view (10.5°), which helps you scan an area. The TM35-384 has more magnification and a longer detection range: 1,800 m against 1,250 m.
How long does the battery last?
Up to 7 hours. The 18650 battery is replaceable, so you can carry a charged spare. You can also run it from 5 V USB-C power.
Can I record video?
Yes. It records video with audio and takes photos to 64 GB of built-in memory. The Wi-Fi hotspot lets you stream to a phone.
Shipping, returns & warranty
Shipping, returns & warranty
- Delivery
- Usually dispatched within 1 week of order confirmation.
- Ships from
- Maasdijk, the Netherlands
- Returns
- 14 days to return the product (EU right of withdrawal). Return shipping is paid by the customer. Return policy
- Warranty
- 2-year AGM limited warranty (Europe)
- Manufacturer
- AGM Global Vision
- Your country's laws
- You are responsible for complying with the laws and regulations of your country when importing, owning or using this product.
- Export control
- This product may be subject to Regulation (EU) 2021/821 on the control of exports, brokering, technical assistance, transit and transfer of dual-use items.
