AGM Spectrum 4K-Mini
AGM Spectrum 4K-Mini
4K CMOS sensor · 3.5× – 20.5× · 30 mm tube · up to 7.8 h battery
Couldn't load pickup availability

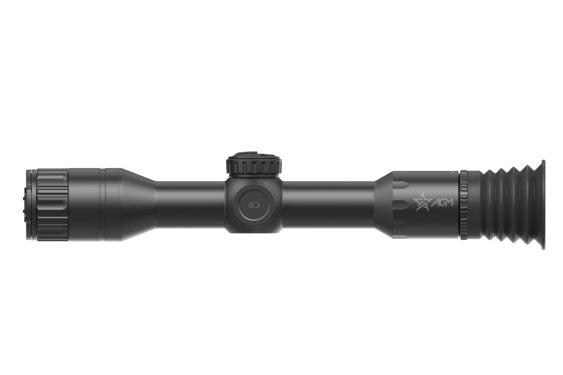

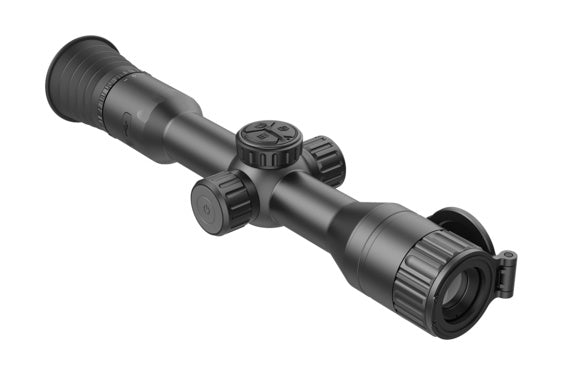

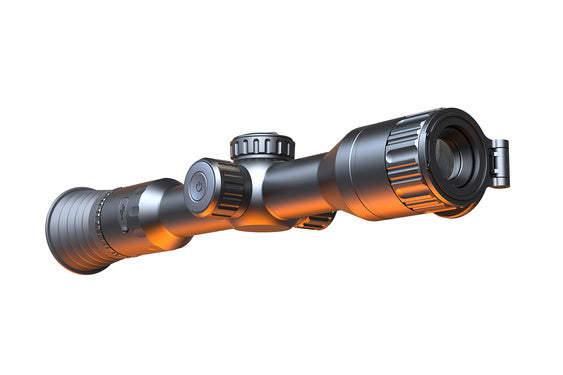

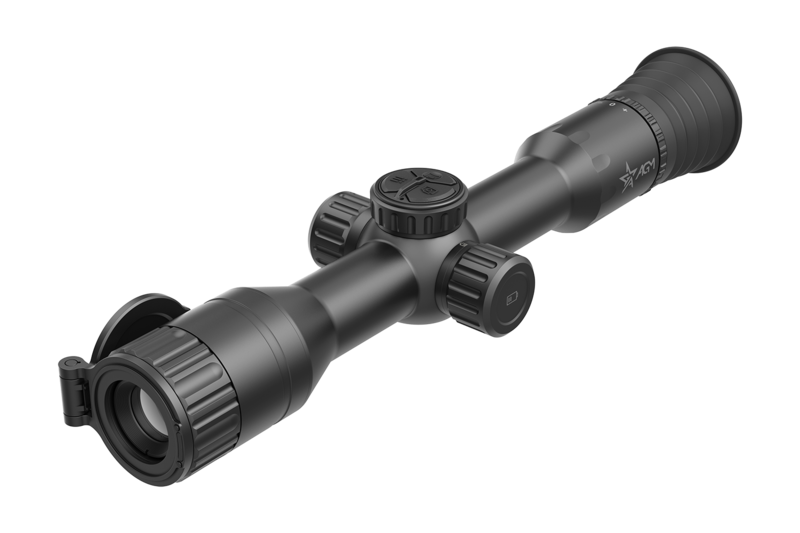

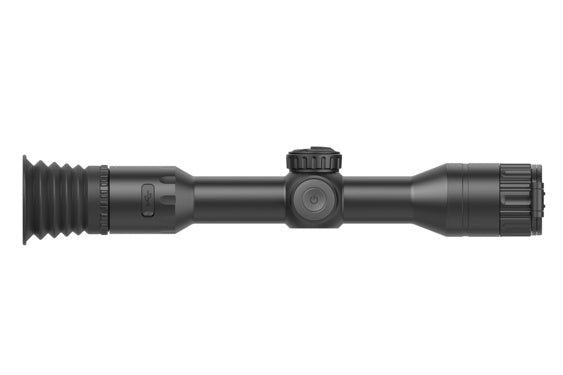

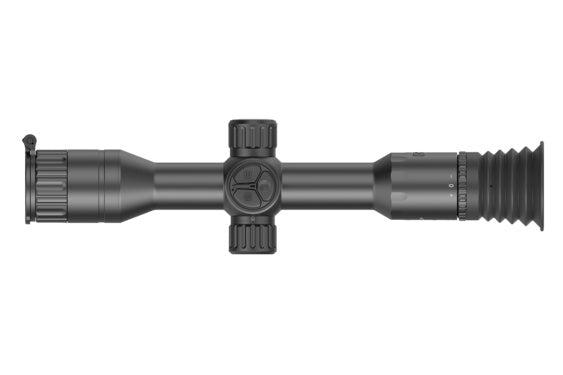

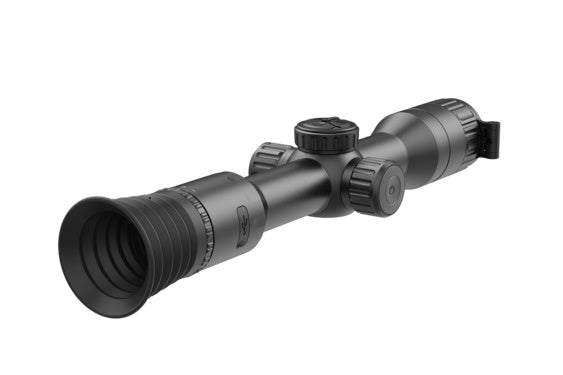

The AGM Spectrum 4K-Mini is a compact digital day and night riflescope for hunting. A 3840 × 2160 CMOS sensor gives a 4K image by day, and a night mode lets you see in the dark with only a small amount of extra IR light. It mounts in standard 30 mm rings and takes recoil up to 1000 g / 0.4 ms.
Specifications
Specifications
| Sensor | CMOS, 3840 × 2160 |
| Frame rate | 50 Hz (4K), 100 Hz (1080p) |
| Magnification | 3.5× – 20.5× |
| Objective lens | 40 mm, F/2.0 |
| Field of view | 10.7° × 6.1° (rectangular display); 10° × 6.1° (circular display) |
| Field of view at 100 m | 18.7 × 10.1 m (rectangular display) |
| Minimum focus distance | 2 m |
| Display | 0.49" OLED, 1920 × 1080 |
| Exit pupil | 6 mm |
| Eye relief | 45 mm |
| Diopter | -5 to +5 dpt |
| Image modes | Auto, Day, Night, Green, Yellow |
| Digital zoom | Continuous, in steps of 0.5×, 1×, 2×, 3× or 4× |
| Reticles | 10 reticles, 8 colours |
| Distance measurement | Stadiametric |
| Recording | Video 1920 × 1080 with audio, shot-activated recording, photos 1920 × 1080 |
| Storage | 32 GB built-in |
| Other functions | Picture-in-picture, freeze zeroing, Wi-Fi hotspot, standby mode |
| Power | Built-in rechargeable Li-ion battery plus 1 × replaceable 18650 battery (included) |
| Battery life | Up to 7.8 hours at 25 °C, Wi-Fi off |
| External power | 5 V / 2 A, USB-C |
| Mounting | Standard 30 mm tube |
| Max. recoil | 1000 g / 0.4 ms |
| Protection | IP67 |
| Operating temperature | -30 °C to +55 °C |
| Dimensions | 331 × 86 × 67 mm (without mount and eyecup) |
| Weight | 0.45 kg (without mount and extra battery) |
Compatible with
Compatible with
- Standard 30 mm scope rings
- AGM Connect app for device control, media and firmware updates
- 18650 rechargeable batteries
In the box
In the box
- Spectrum 4K-Mini riflescope
- 18650 battery
- 18650 battery charger
- Power adapter
- USB-C cable
- Lens cloth
- Carrying case
- User manual
FAQ
FAQ
Does it work at night?
Yes. It has a night mode. AGM says it needs only a small amount of external IR light at night. An IR illuminator is not in the box.
Which rings do I need?
It has a standard 30 mm tube, so it fits standard 30 mm scope rings. Rings are not listed in the box.
How long does the battery last?
Up to 7.8 hours with Wi-Fi off. It has a built-in battery and a replaceable 18650 battery, and you can also run it from USB-C power.
Can it record my shots?
Yes. Shot-activated recording starts a video when you fire. Video is recorded at 1920 × 1080 with audio, to 32 GB of built-in memory.
Shipping, returns & warranty
Shipping, returns & warranty
- Delivery
- Usually dispatched within 1 week of order confirmation.
- Ships from
- Maasdijk, the Netherlands
- Returns
- 14 days to return the product (EU right of withdrawal). Return shipping is paid by the customer. Return policy
- Warranty
- 3-year AGM limited warranty (Europe)
- Manufacturer
- AGM Global Vision
- Your country's laws
- You are responsible for complying with the laws and regulations of your country when importing, owning or using this product.
- Export control
- This product may be subject to Regulation (EU) 2021/821 on the control of exports, brokering, technical assistance, transit and transfer of dual-use items.
