AGM Taipan TM19-384
AGM Taipan TM19-384
384 × 288 sensor · 13.8° field of view · 0.31 kg · 7.5+ h battery · IP67
Couldn't load pickup availability

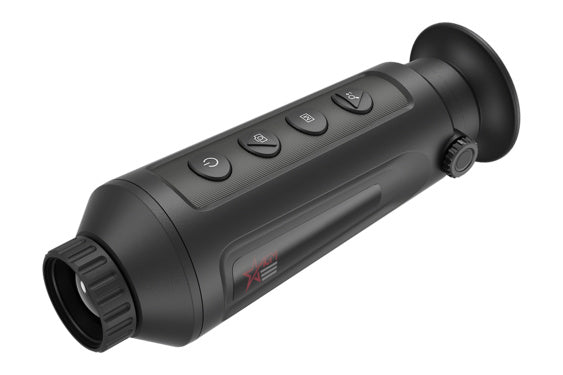

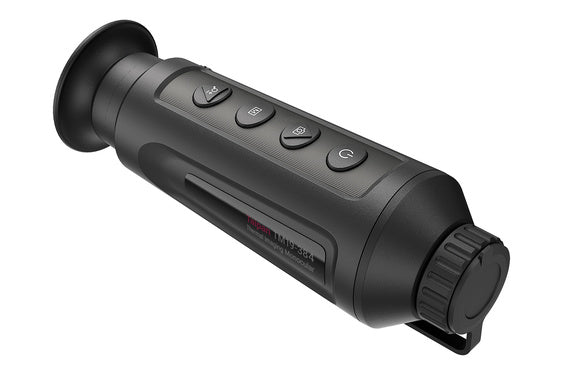

The AGM Taipan TM19-384 is a compact, light handheld thermal monocular for hunting, wildlife observation and outdoor use. It has a 384 × 288 sensor with 12 µm pixels and a 19 mm lens, which gives a wide 13.8° field of view for scanning. It weighs only 0.31 kg and runs for more than 7.5 hours on its built-in battery.
Specifications
Specifications
| Sensor | 384 × 288, 12 µm VOx, uncooled |
| NETD | < 35 mK |
| Spectral range | 8–14 µm |
| Refresh rate | 50 Hz |
| Lens | 19 mm, F1.0 |
| Field of view | 13.8° × 10.4° |
| Magnification | 2× – 16× |

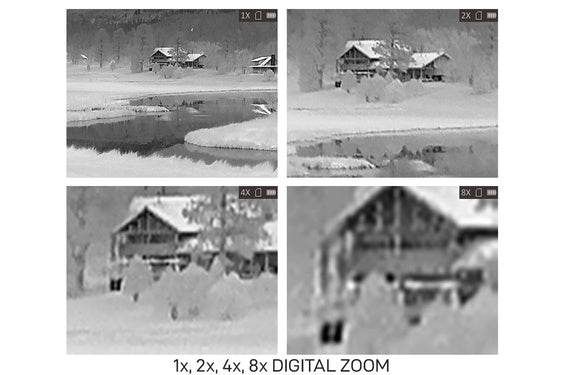

| Digital zoom | 1×, 2×, 4×, 8× |
| Detection range (1.8 m target) | 900 m |
| Display | 0.4" LCOS, 1280 × 960 |

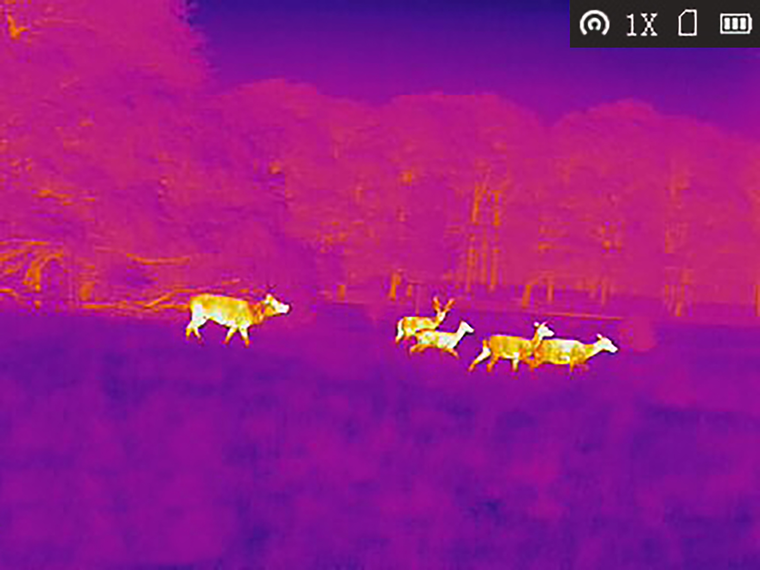

| Palettes | Black Hot, White Hot, Red Hot, Fusion |
| Other functions | Hot spot tracking, Wi-Fi hotspot, standby mode, multi-language menu |
| Recording | Video and photos, 8 GB built-in |
| Video output | CVBS (through USB) |
| Power | Built-in rechargeable lithium battery |
| Battery life | More than 7.5 hours, Wi-Fi off |
| External power | 5 V / 2 A, USB-C |
| Protection | IP67 |
| Drop test | 1.5 m |
| Operating temperature | -20 °C to +55 °C |
| Dimensions | 171 × 61 × 57 mm |
| Weight | 0.31 kg |
Compatible with
Compatible with
- External 5 V USB-C power supplies and power banks
- AGM Solar Power Bank 30000 mAh, part 6628XPB31 (sold separately)
- AGM Connect app over Wi-Fi
In the box
In the box
- Taipan TM19-384 thermal monocular
- USB cable
- EU plug
- Lanyard
- Protective bag
- Lens tissue
- User manual
FAQ
FAQ
How far can I see with it?
AGM gives a detection range of 900 m for a 1.8 m target. The wide 13.8° field of view makes it good for scanning at short and medium distances.
Can I change the battery?
No. The battery is built in and you charge it through USB-C. It runs for more than 7.5 hours with Wi-Fi off. You can also use a 5 V power bank in the field.
Can I record video?
Yes. It records video and takes photos to 8 GB of built-in memory. You can control it from a phone with the AGM Connect app.
