AGM Global Vision
AGM Varmint LRF TS35-640
AGM Varmint LRF TS35-640
640 × 512 sensor · 2× – 16× · 600 m laser rangefinder · IP67
Couldn't load pickup availability

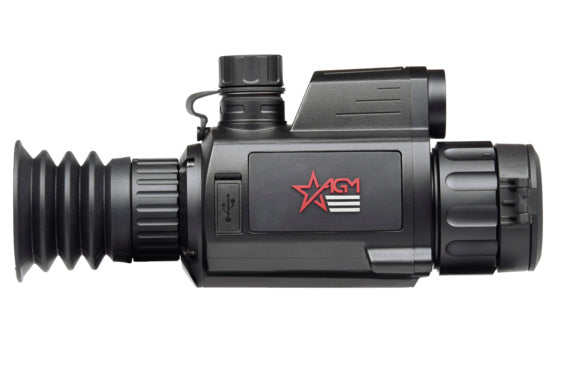

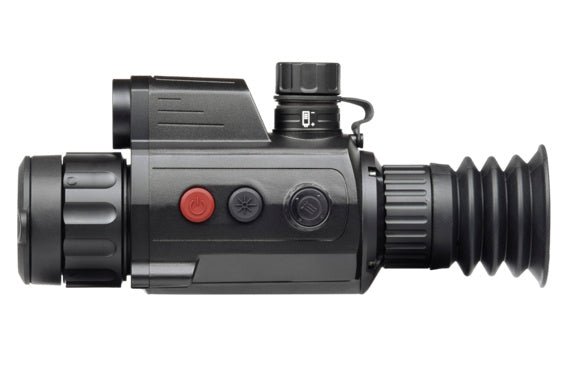

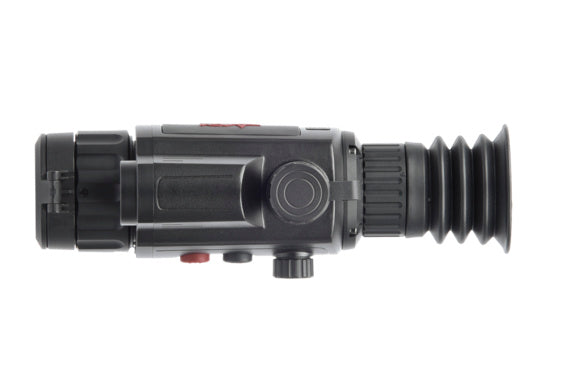

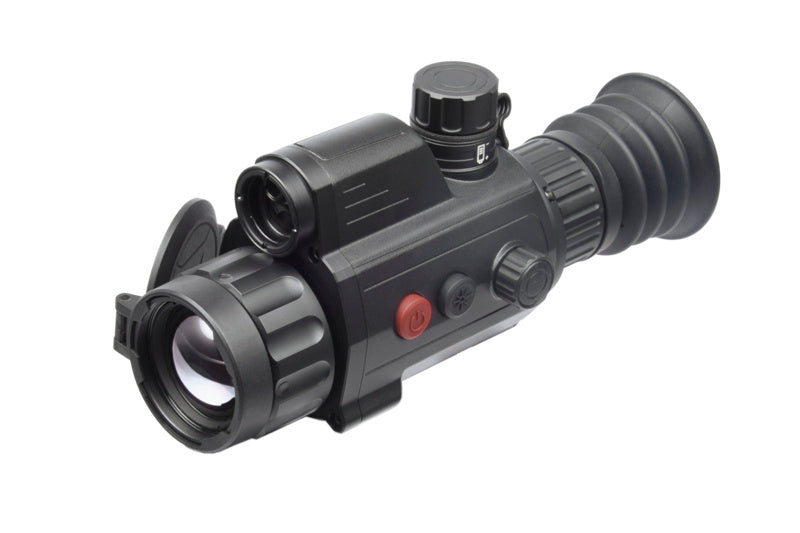

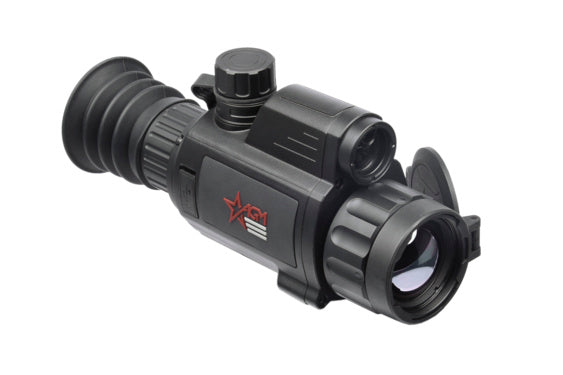

The AGM Varmint LRF TS35-640 is a thermal riflescope with a built-in laser rangefinder, for hunting at night. It has a 640 × 512 sensor with 12 µm pixels and a 35 mm lens. The rangefinder measures distance up to 600 m, so you know the range before you take the shot. You can also use it handheld as a thermal monocular.
Specifications
Specifications
| Sensor | 640 × 512, 12 µm VOx, uncooled |
| NETD | < 35 mK |
| Spectral range | 8–14 µm |
| Refresh rate | 50 Hz |
| Lens | 35 mm, F1.0 |
| Field of view | 12.52° × 10.03° |
| Magnification | 2× – 16× |
| Digital zoom | 1×, 2×, 4×, 8× |
| Detection range (1.8 m target) | 1,750 m |
| Eye relief | 45 mm |
| Display | 0.39" OLED, 1024 × 768 |
| Palettes | Black Hot, White Hot, Red Hot, Fusion |
| Scene modes | Jungle, Recognition |
| Reticles | 5 types, 4 colours, on/off |
| Laser rangefinder | Up to 600 m, ±2 m, 905 nm, Class 1 |
| Zeroing | Digital, 0.22 mil / 0.73 MOA per click |
| Reticle #4 scale interval | 2 mil / 6.75 MOA |
| Other functions | Hot spot tracking, picture-in-picture, burn prevention, Wi-Fi hotspot, sleep mode |
| Recording | Video and photos, 16 GB built-in |
| Video output | CVBS (through USB) |
| Power | 1 × 18650 rechargeable lithium battery (3.7 V) |
| Battery life | Up to 4.5 hours, Wi-Fi off |
| External power | 5 V / 2 A, USB-C |
| Protection | IP67 |
| Drop test | 1.5 m |
| Operating temperature | -20 °C to +55 °C |
| Dimensions | 200 × 66 × 109 mm |
| Weight | 652 g (without battery) |
Compatible with
Compatible with
- AGM-2118 ADM single-lever QR mount, part 63061181, for Picatinny / Weaver rails (sold separately)
- AGM Connect app for live view and file transfer
- 18650 rechargeable lithium batteries
In the box
In the box
- Varmint LRF TS35-640 thermal riflescope
- 18650 rechargeable battery
- Battery charger
- Power adapter
- EU plug
- USB cable
- Lens tissue
- User manual
FAQ
FAQ
Is a mount included?
No. AGM states that the ADM QR mount is not included. The AGM-2118 ADM single-lever QR mount is made for the Varmint LRF and fits Picatinny / Weaver rails.
How far does the rangefinder measure?
Up to 600 m, with an accuracy of ±2 m.
How long does the battery last?
Up to 4.5 hours with Wi-Fi off, on one 18650 battery. You can carry a charged spare, or run it from 5 V USB-C power.
Can I use it without a rifle?
Yes. You can use it handheld as a thermal monocular for observation.
