PGD DELTA IIIA Soft Armour Insert

NIJ IIIA soft armour · STANAG 2920 V50 592 m/s · 6.7 mm, 5.6 kg/m² · ESAPI and square cuts

€139,95 EUR

RRP €139,95 EUR

Sale Sold out

Taxes included.

Quantity

Authorised PGD dealer

Ships from the Netherlands

7 years on the ballistic panel (PGD)

The PGD DELTA IIIA Soft Armour Insert is a stand-alone NIJ IIIA soft armour panel, available in ESAPI-cut, square-cut and 25 × 30 cm (10 × 12 in) sizes. It stops .44 Magnum and 9 mm FMJ handgun rounds and is rated to STANAG 2920 for fragments. The Teijin aramid panel is 6.7 mm thick and sealed in a TPU cover that resists water and sweat. PGD makes it in its ISO 9001:2015 certified factory in Denmark and says it fits most third-party carriers.

Typical uses

Adding NIJ IIIA soft armour to an existing carrier or vest
Police, security and close protection
Professional users who build their own armour setup

Specifications

Ballistic protection	NIJ 0101.04 Level IIIA: .44 Magnum SJHP at 436 m/s ±9, 9 mm FMJ at 439 m/s ±9
Fragment protection	STANAG 2920, V50 592 m/s ±9 (17 gr fragment)
Ballistic material	Teijin aramid, 5.6 kg/m², 6.7 mm thick
Flexibility	10/10 (PGD rating)
Cover	Ultrasonic-sealed TPU, water and sweat resistant
Profile	Slim, close-fitting, unisex

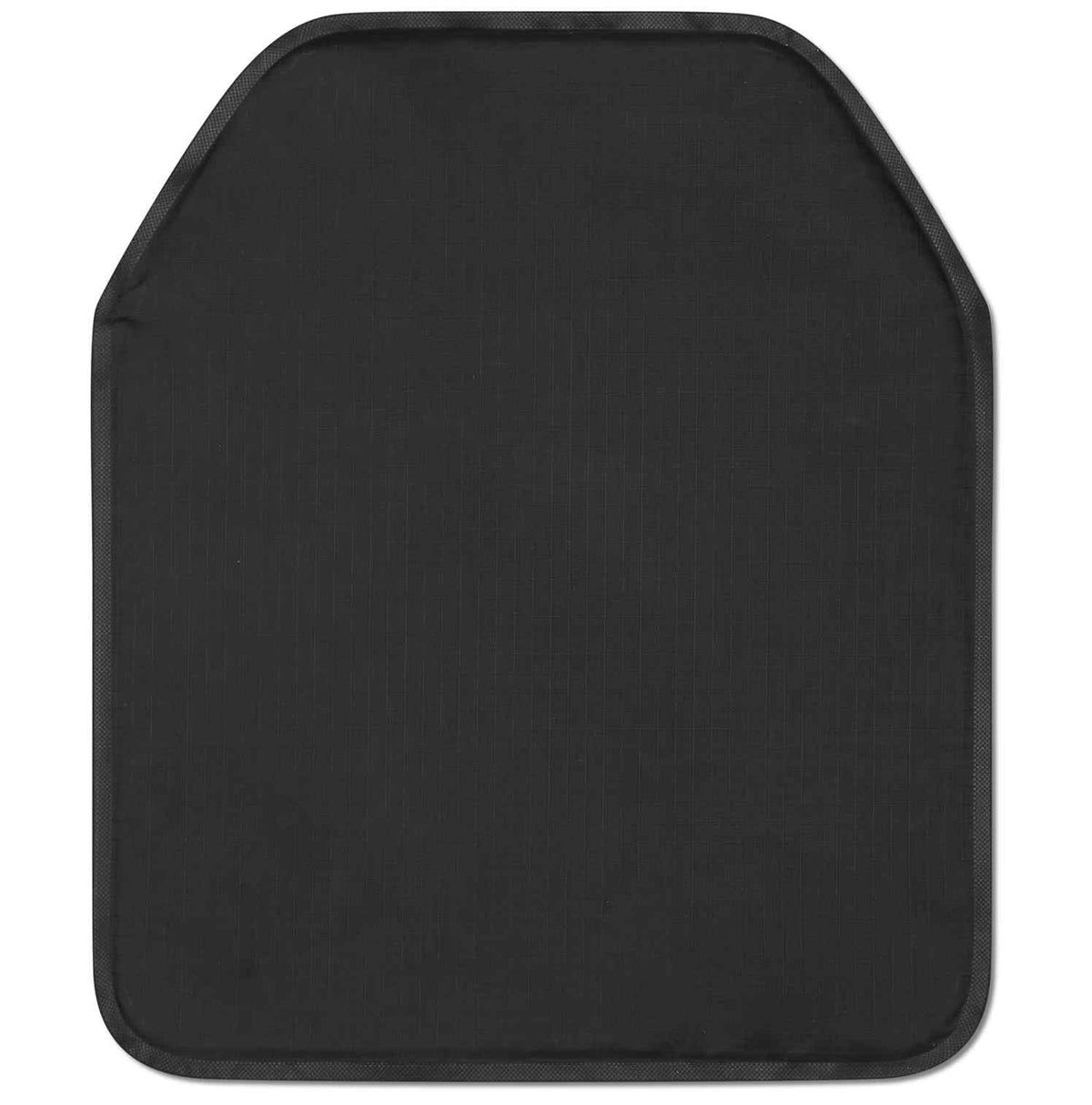

ESAPI cut sizes	Small 227 × 303 mm (8.75 × 11.75 in) · Medium 246 × 323 mm (9.5 × 12.5 in) · Large 265 × 342 mm (10.25 × 13.75 in) · XL 285 × 361 mm (11 × 14 in)
10 × 12 in cut	250 × 300 mm (10 × 12 in); PGD lists it as SAPI cut (Standard)

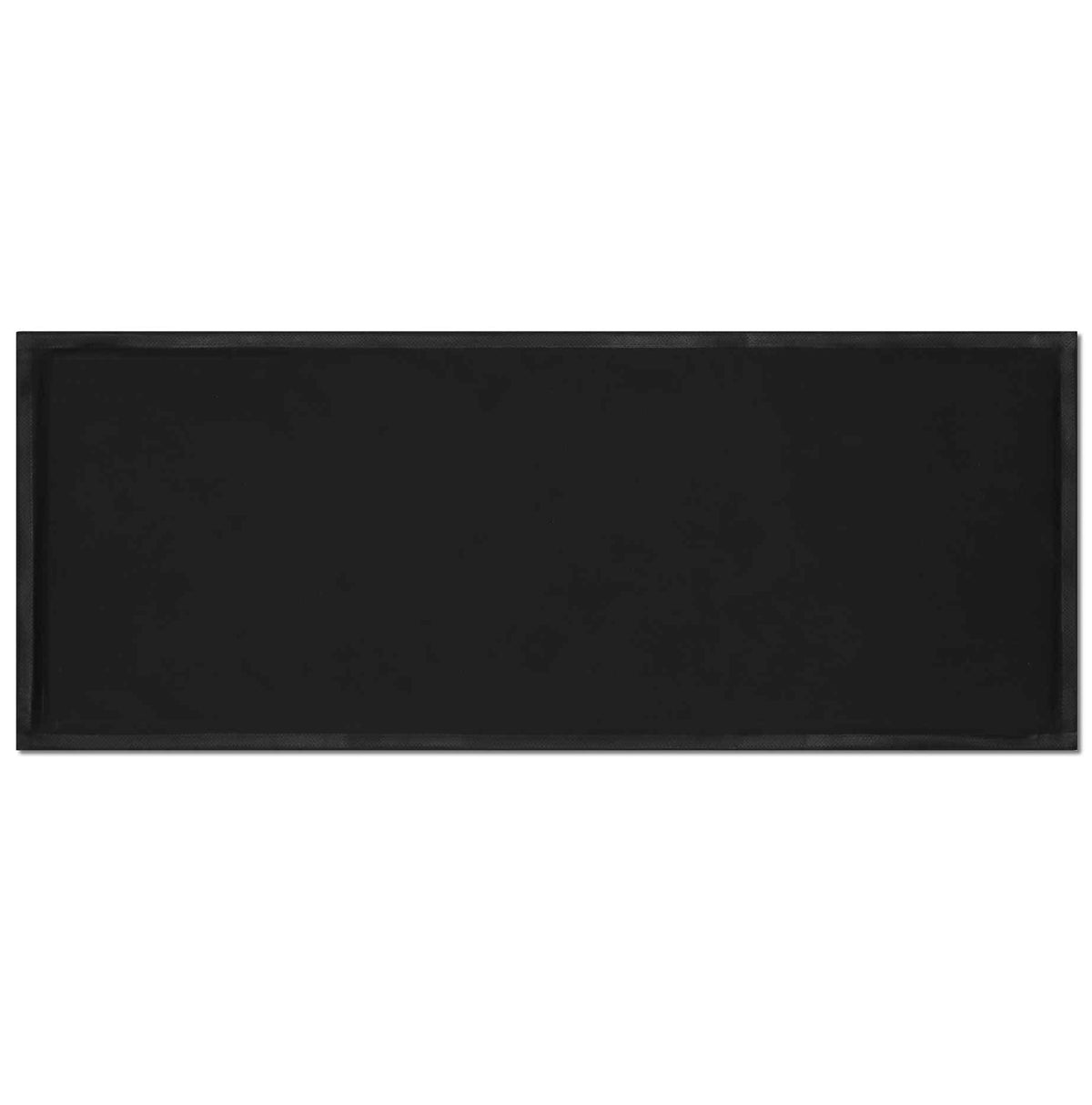

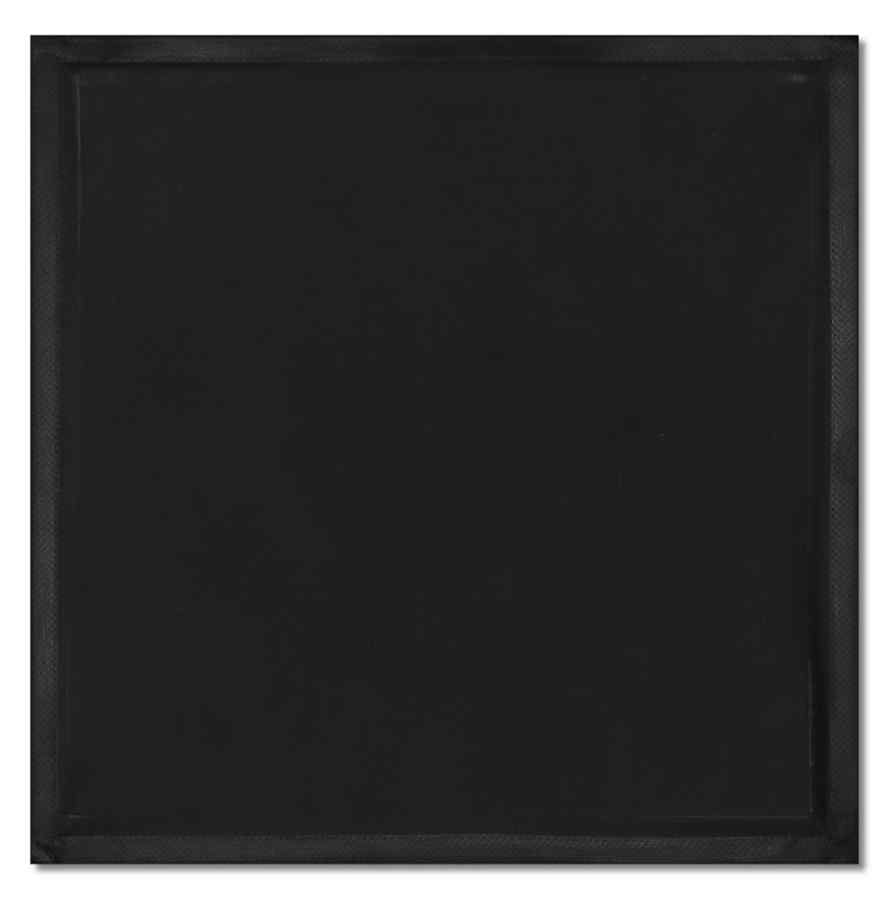

Square cut sizes	150 × 150 mm (6 × 6 in) · 150 × 228 mm (6 × 9 in) · 127 × 355 mm (5 × 14 in) · 127 × 279 mm (5 × 11 in) · 127 × 228 mm (5 × 9 in) · 127 × 178 mm (5 × 7 in) · 6 × 8 in (dimensions not published by PGD)
Testing	Element Defense (USA) and Aitex (Spain)
Made in	Denmark, ISO 9001:2015 certified factory

Compatible with

Most third-party carriers, according to PGD; check that the carrier pocket matches the insert size

In the box

DELTA IIIA soft armour insert in the selected size, in a sealed TPU cover

FAQ

Which size do I need?

Choose the insert that matches the pocket of your carrier. Compare the dimensions in the specifications with the pocket: ESAPI cuts run from Small (227 × 303 mm) to XL (285 × 361 mm), square cuts from 127 × 178 mm to 127 × 355 mm.

Will it fit my carrier?

PGD says the DELTA insert fits most third-party carriers. Check the pocket size of your carrier against the insert dimensions before you order.

What does it stop?

It is rated NIJ 0101.04 Level IIIA against .44 Magnum SJHP (436 m/s) and 9 mm FMJ (439 m/s) handgun rounds, and to STANAG 2920 against fragments (V50 592 m/s, 17 gr fragment). For rifle threats you need a hard armour plate.

Is it water resistant?

Yes. The panel is sealed in an ultrasonic-sealed TPU cover that PGD describes as 100% water and sweat resistant.

Shipping, returns & warranty

Delivery: Usually dispatched within 1 week of order confirmation.
Ships from: Maasdijk, the Netherlands
Returns: 14 days to return the product (EU right of withdrawal). Return shipping is paid by the customer. Return policy
Warranty: 7 years on the ballistic panel (PGD)
Manufacturer: PGD
