PGD U-line NIJ IV Side Plate

NIJ 0101.06 Level IV · Standalone · SiC ceramic, 26 mm · 1.0–1.35 kg

€196,95 EUR

RRP €196,95 EUR

Sale Sold out

Taxes included.

Size 6 × 6 in (15 × 15 cm) 6 × 8 in (15 × 20 cm)

Quantity

Authorised PGD dealer

Ships from the Netherlands

7 years ballistic warranty (PGD)

The PGD U-line NIJ IV Side Plate is a standalone ceramic side plate tested to NIJ 0101.06 Level IV. It is rated against .30 cal M2 AP and tested against 7.62×54R API B32, 5.56×45 SS109, 7.62 NATO M80 and 7.62×39 M43 as special threats. It is made of monolithic silicon carbide from Saint-Gobain with an aramid backing, a thin foam layer and a water-repellent Cordura cover. The plate is single-curved, square cut, 26 mm thick and comes in 6 × 6 in and 6 × 8 in.

Typical uses

Side protection in plate carriers with side plate pockets
Police and tactical teams
Adding side coverage to U-line NIJ IV front and back plates

Specifications

Protection standard	NIJ 0101.06 Level IV
Rated threat	.30 cal (.30-06) 166 gr (10.8 g) AP (U.S. M2AP), 878 m/s ±9.1
Special threat	7.62×54R 150 gr API B32, 854 m/s ±9.1
Special threat	5.56×45 mm 62 gr FMJ (SS109), 950 m/s ±9.1
Special threat	7.62 mm NATO 147 gr (9.6 g) FMJ (M80), 847 m/s ±9.1, 1 shot
Special threat	Russian 7.62×39 mm 123 gr MSC (M43), 725 m/s ±9.1, 1 shot
Standalone / ICW	Standalone, no soft armour needed
Material	Monolithic silicon carbide (SiC) (Saint-Gobain), aramid backing
Cover	Water-repellent Cordura; thin foam layer protects the ceramic from impact damage

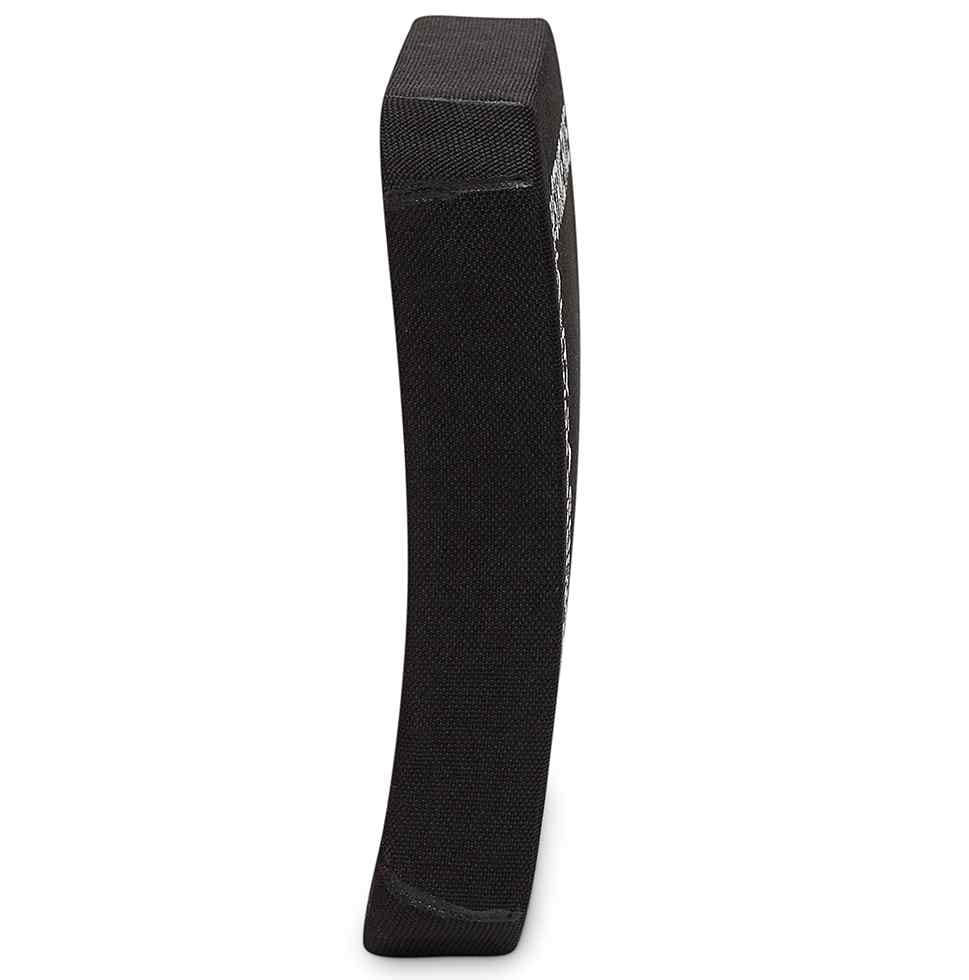

Curve	Single curve
Cut	Square cut
Thickness	26 mm (1 in)

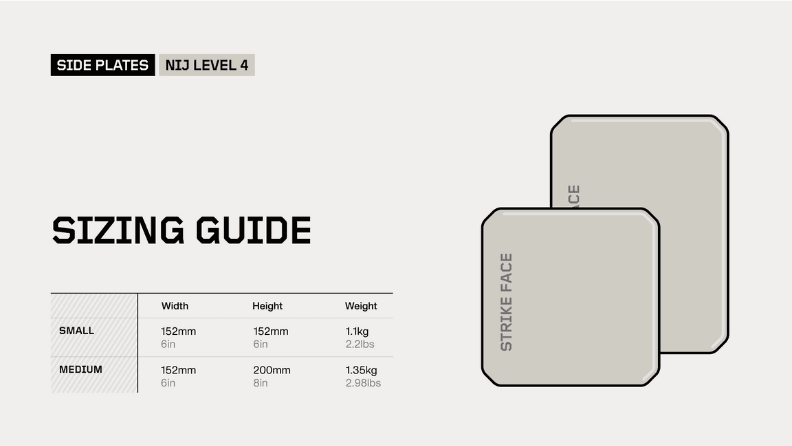

Dimensions	6 × 6 in: 150 × 150 mm · 6 × 8 in: 150 × 200 mm
Weight	6 × 6 in 1.0 kg (2.2 lb) · 6 × 8 in 1.35 kg (2.98 lb)
Certification	Tested to NIJ 0101.06 Level IV (PGD)
Made in	Europe

Compatible with

Plate carriers with 6 × 6 in or 6 × 8 in side plate pockets
PGD TQR 2.0 Plate Carrier (sold separately)
PGD U-line NIJ IV front and back plates (sold separately)

In the box

1 × U-line NIJ IV side plate (single plate, not a pair)

FAQ

Do I need soft armour behind it?

No. PGD describes the side plate as standalone.

Which size do I need?

Match the side plate pocket of your carrier: 6 × 6 in (150 × 150 mm) or 6 × 8 in (150 × 200 mm).

How heavy is it?

1.0 kg for 6 × 6 in and 1.35 kg for 6 × 8 in.

Is it sold as a pair?

No. Side plates are sold as single pieces. For both sides, order two.

Shipping, returns & warranty

Delivery: Usually dispatched within 1 week of order confirmation.
Ships from: Maasdijk, the Netherlands
Returns: 14 days to return the product (EU right of withdrawal). Return shipping is paid by the customer. Return policy
Warranty: 7 years ballistic warranty (PGD)
Manufacturer: PGD
