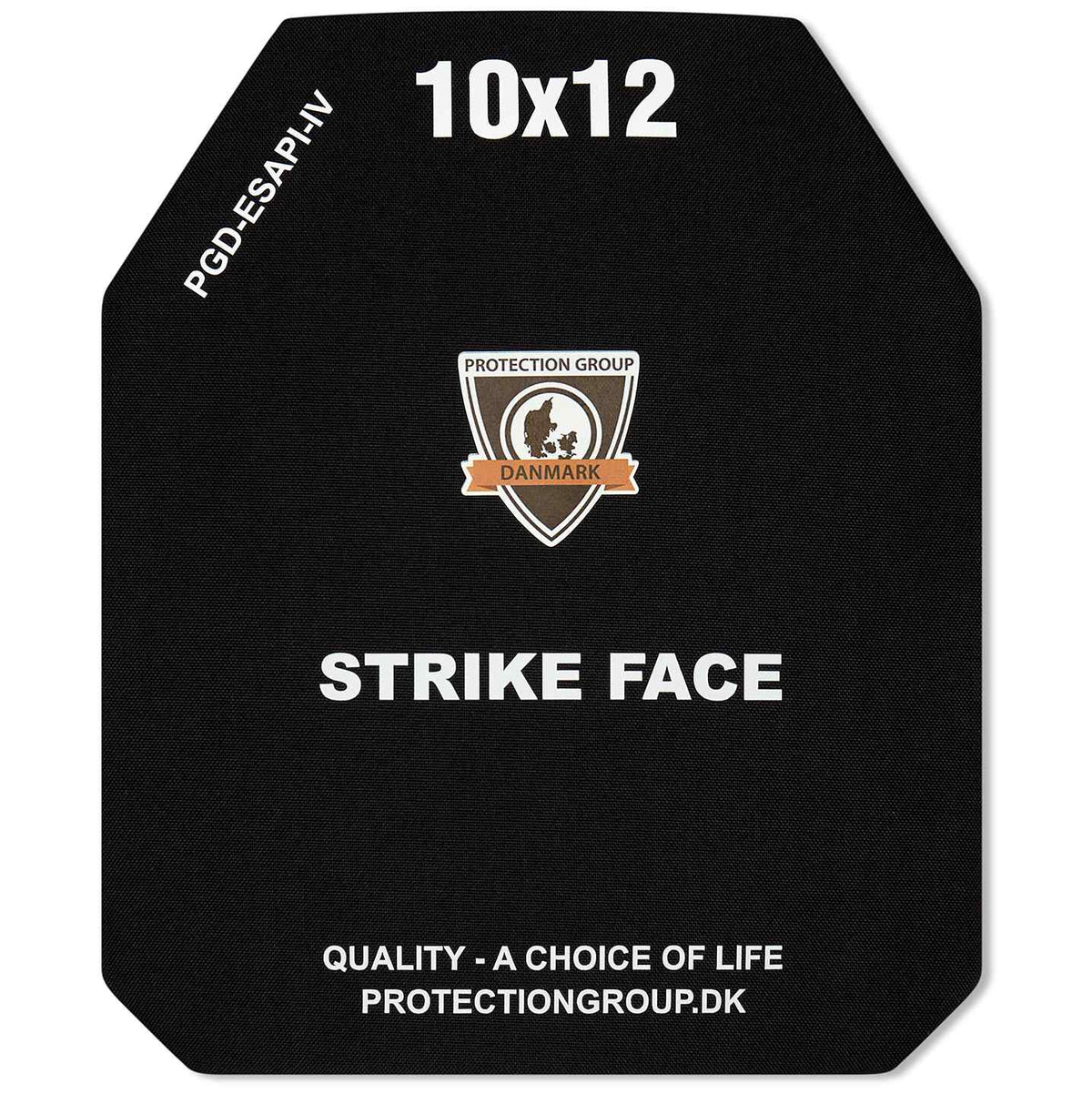

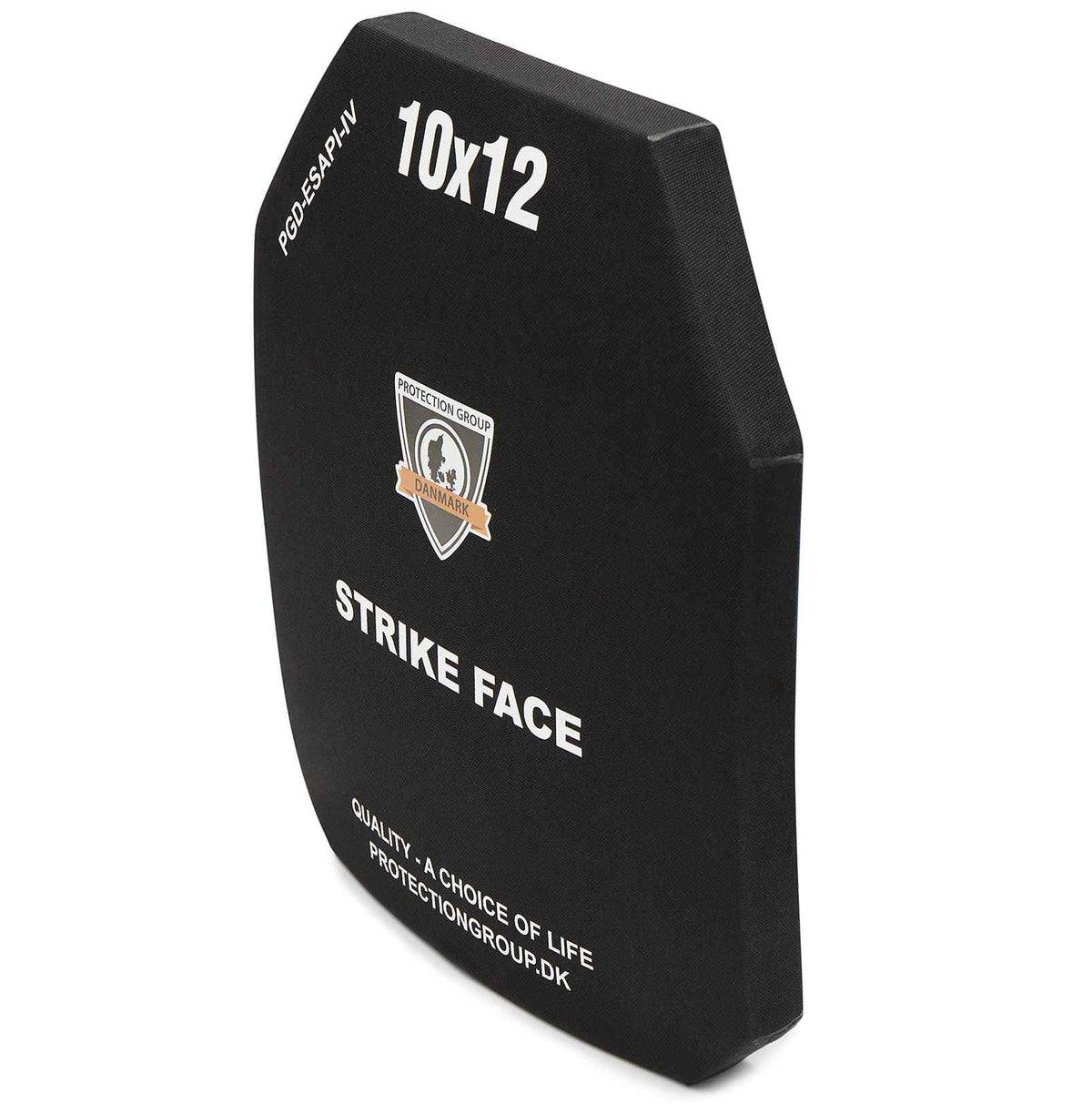

PGD U-line NIJ IV Standalone Plate
PGD U-line NIJ IV Standalone Plate
NIJ 0101.06 Level IV · Standalone · Monolithic SiC ceramic, 26 mm · 2.7–3.83 kg
Couldn't load pickup availability
The PGD U-line NIJ IV is a standalone ceramic hard armour plate tested to NIJ 0101.06 Level IV. It is rated against .30 cal M2 AP armour-piercing rounds and tested against 7.62×54R API B32, 5.56×45 SS109, 7.62 NATO M80 and 7.62×39 M43 as special threats, without soft armour behind it. The plate is monolithic silicon carbide ceramic from Saint-Gobain, edge to edge, with an aramid backing and a water-repellent Cordura cover. It is multi-curved and ESAPI cut, in sizes ESAPI Small to XL and 10 × 12 in.
Typical uses
- Police and tactical teams
- Front and back plates for plate carriers
- Professional users who need protection against armour-piercing rifle rounds
Specifications
Specifications
| Protection standard | NIJ 0101.06 Level IV |
| Rated threat | .30 cal (.30-06) 166 gr M2AP, 878 m/s ±9.1, 1 shot |
| Special threat | 7.62×54R 150 gr API B32, 854 m/s ±9.1, 1 shot |
| Special threat | 5.56×45 mm 62 gr FMJ SS109, 950 m/s ±9.1 |
| Special threat | 7.62 mm NATO 147 gr FMJ M80, 847 m/s ±9.1 |
| Special threat | Russian 7.62×39 mm 123 gr MSC M43, 725 m/s ±9.1 |
| Standalone / ICW | Standalone, no soft armour needed |
| Material | Monolithic silicon carbide (SiC) ceramic (Saint-Gobain), edge to edge; aramid backing with anti back-face-signature layer |
| Cover | Water-repellent Cordura; thin foam layer around the plate for impact protection |

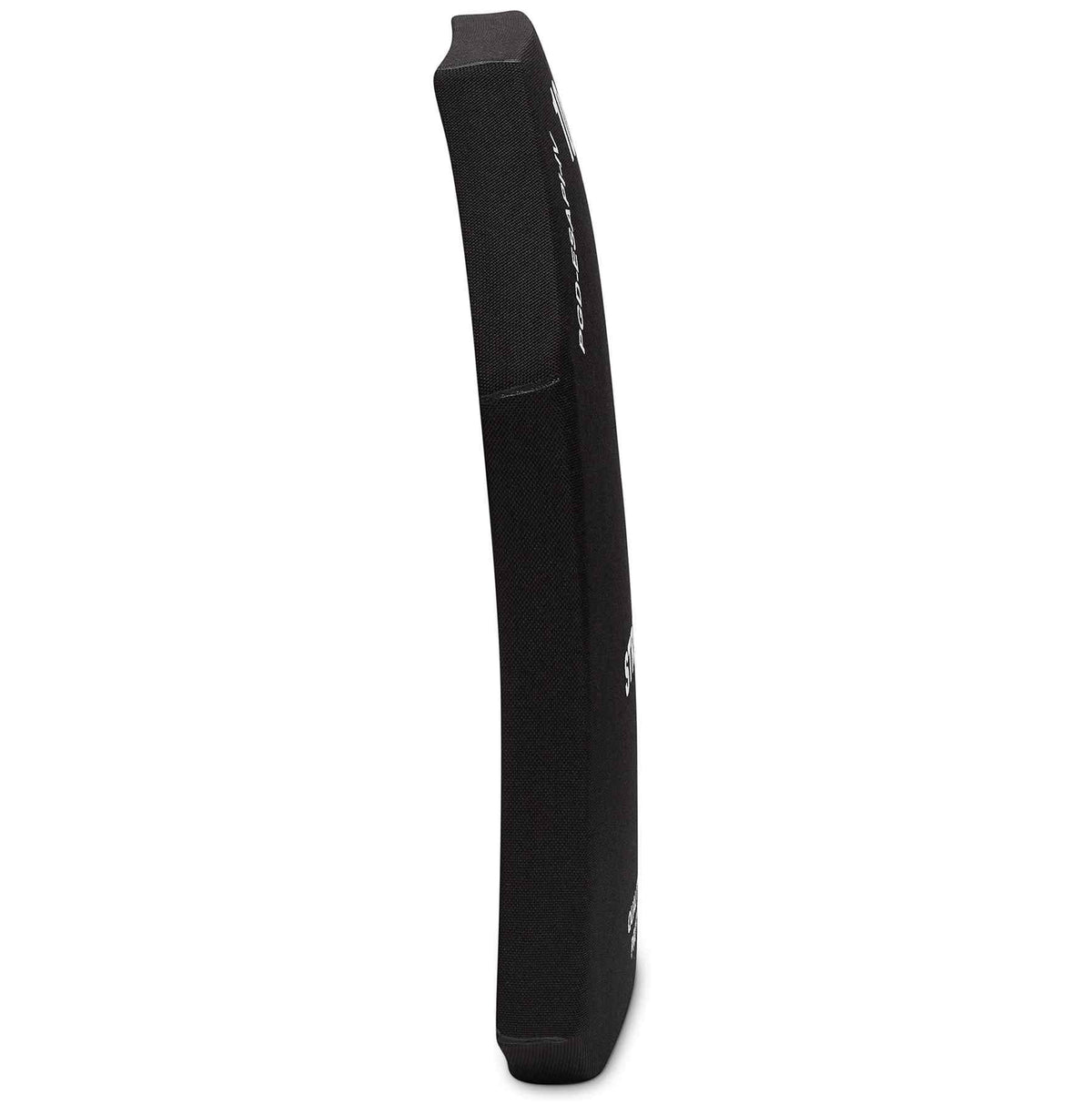

| Curve | Multi-curved (3D) |
| Cut | ESAPI cut |
| Thickness | 26 mm |

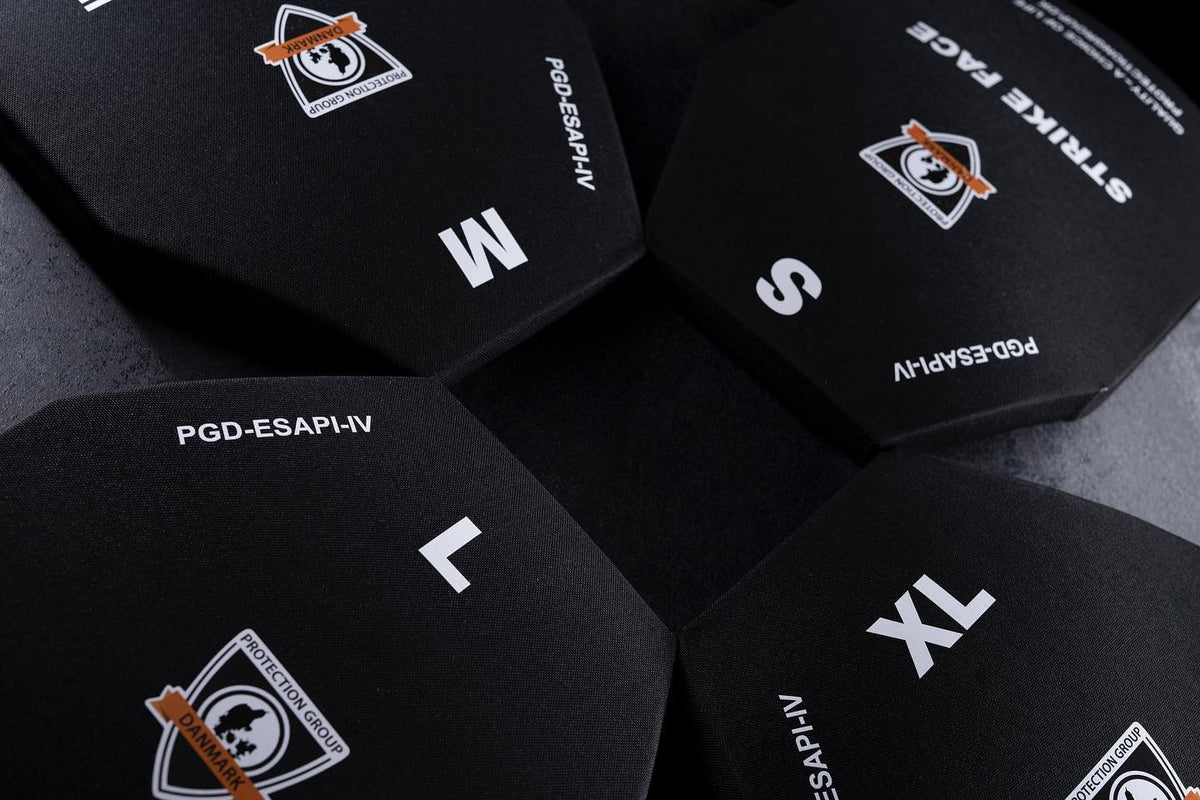

| Dimensions | ESAPI Small 227 × 303 mm (8.75 × 11.75 in) · ESAPI Medium 246 × 323 mm (9.5 × 12.5 in) · ESAPI Large 265 × 342 mm (10.25 × 13.5 in) · ESAPI XL 285 × 361 mm (11 × 14 in) · 10 × 12 in: 250 × 300 mm |
| Weight (±0.1 kg) | ESAPI Small 2.7 kg · Medium 3.10 kg · Large 3.53 kg · XL 3.83 kg · 10 × 12 in 3.09 kg |
| Certification | Tested to NIJ 0101.06 Level IV (PGD) |
| Made in | Europe |
Compatible with
Compatible with

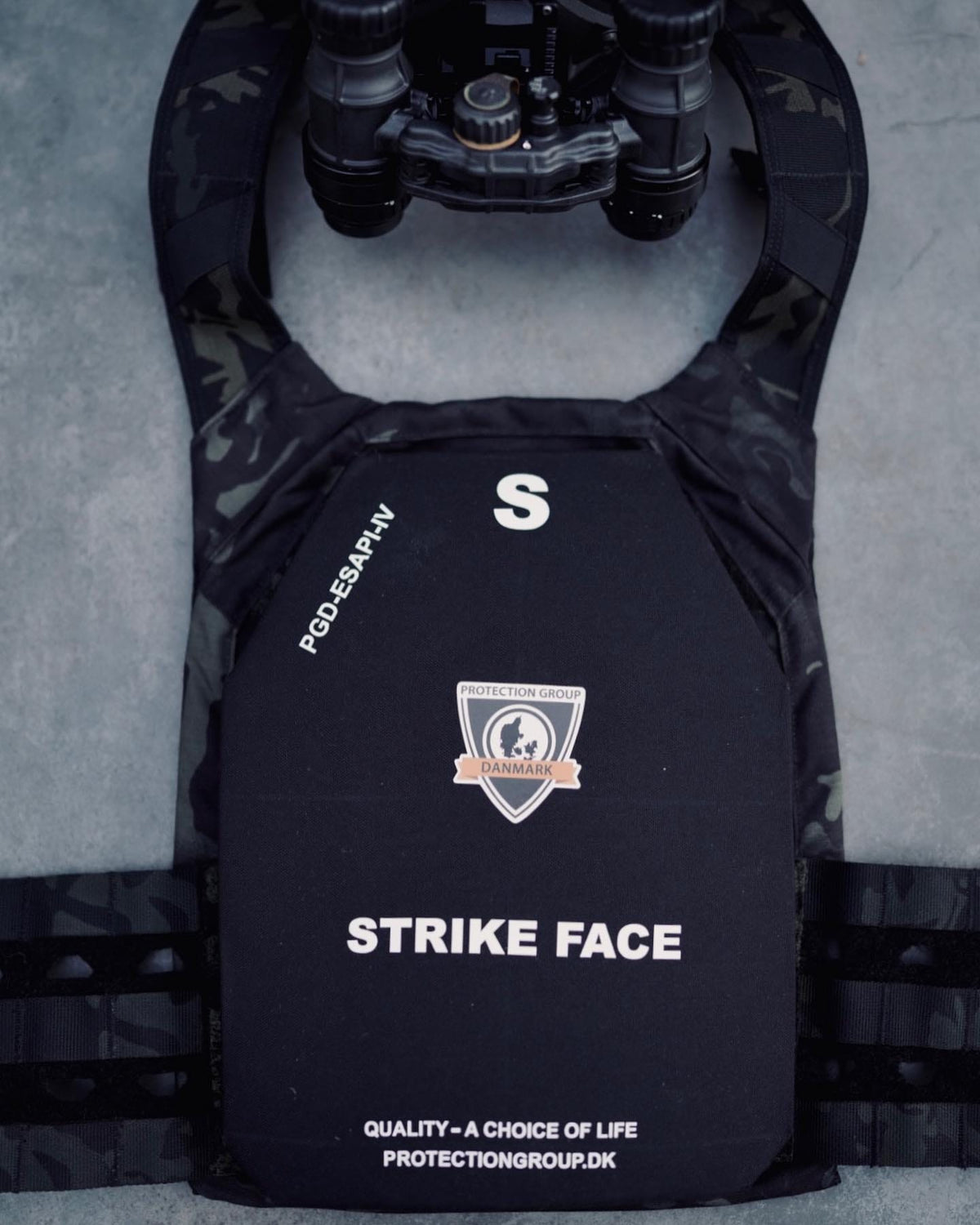

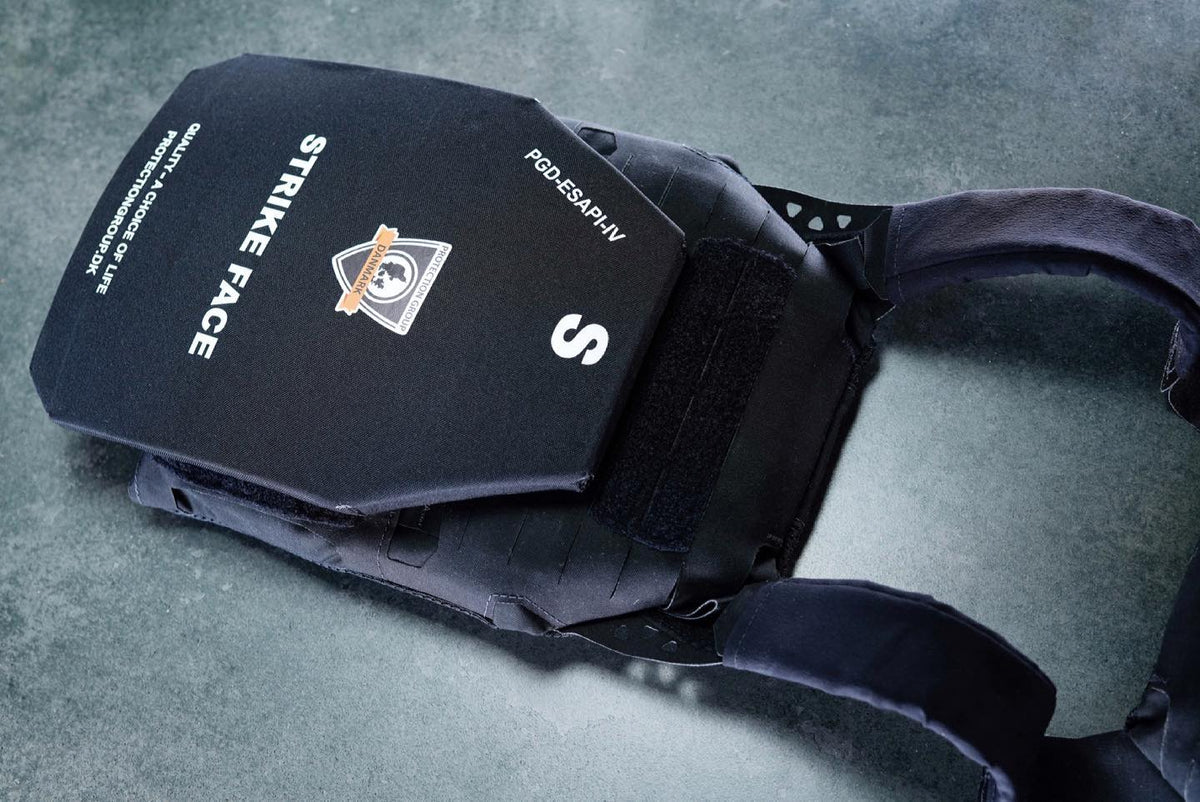

- Plate carriers with ESAPI plate pockets (Small to XL) or 10 × 12 in plate pockets
- PGD TQR 2.0 Plate Carrier (sold separately)
- PGD U-line NIJ IV side plates, 6 × 6 in and 6 × 8 in (sold separately)
In the box
In the box
- 1 × U-line NIJ IV plate (single plate, not a pair)
FAQ
FAQ
Do I need soft armour behind it?
No. The U-line NIJ IV is a standalone plate and is rated against its listed threats without soft armour.
What does Level IV stop?
The rated threat is .30 cal M2 AP at 878 m/s. PGD also lists 7.62×54R API B32, 5.56×45 SS109, 7.62 NATO M80 and 7.62×39 M43 as special threats.
Is it multi-hit?
PGD lists the rated .30 cal M2AP threat and the 7.62×54R API B32 special threat at 1 shot. A multi-hit rating is not stated.
Which size do I need?
Pick the size that fits the plate pocket of your carrier: ESAPI Small to XL, or 10 × 12 in (250 × 300 mm). Plates are sold as single plates, so order two for front and back.
