AGM Fuzion LRF
AGM Fuzion LRF
Thermal + visible fusion · 600 m laser rangefinder · 384 or 640 sensor · IP67
Couldn't load pickup availability

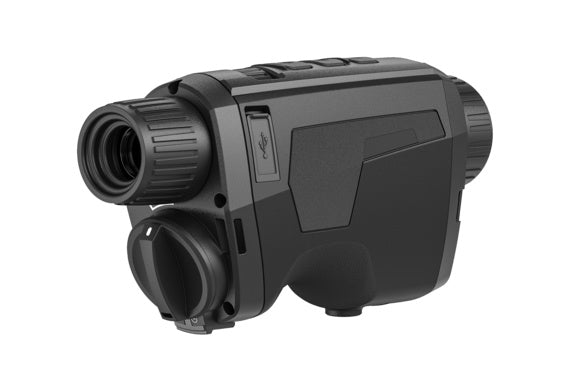

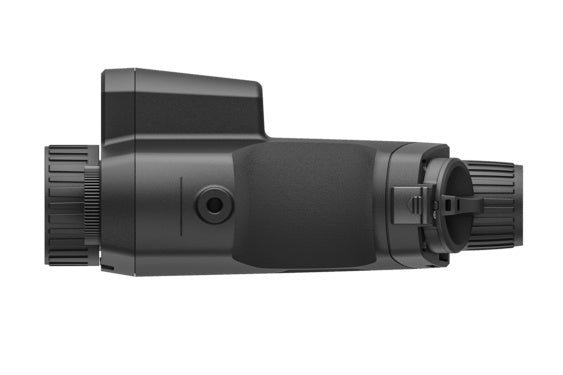

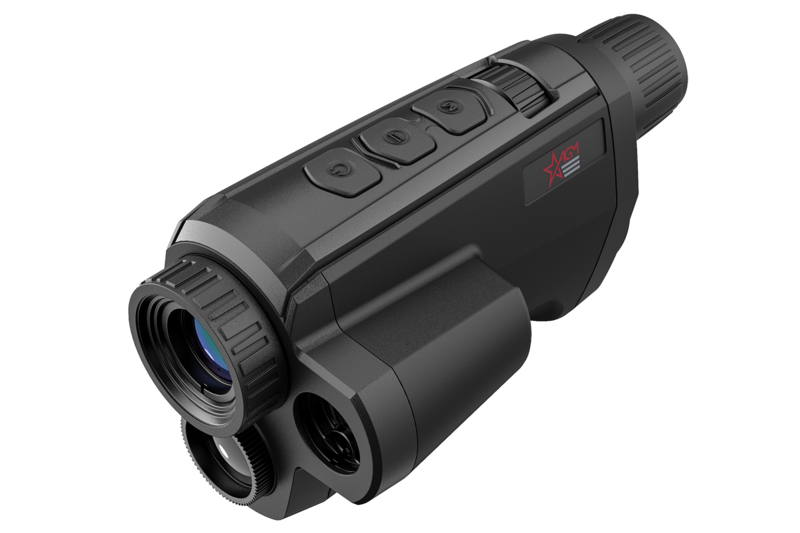

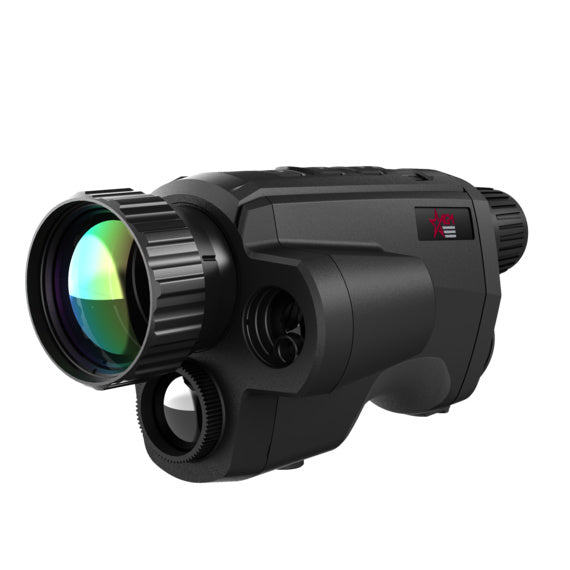

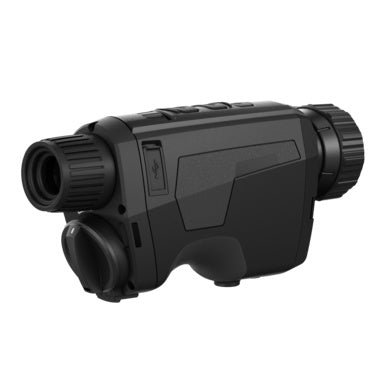

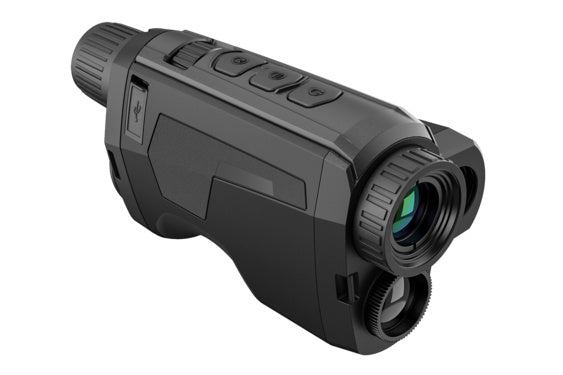

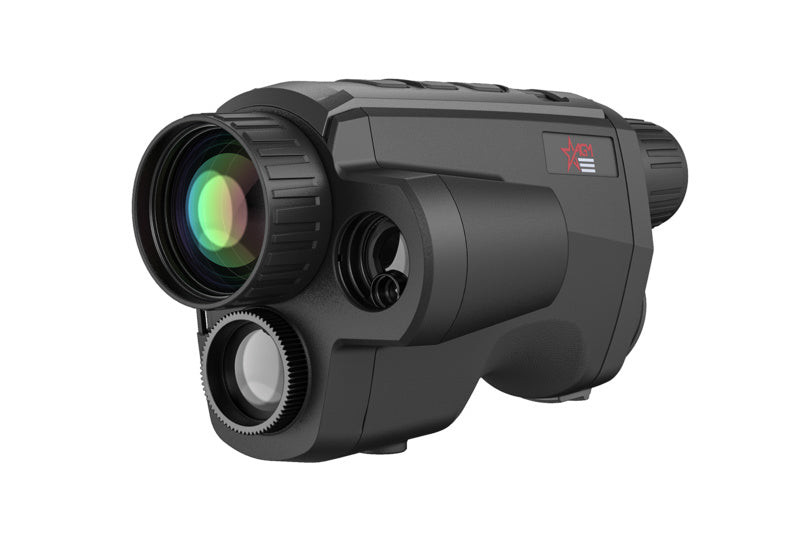

The AGM Fuzion LRF is a handheld bi-spectrum monocular with a built-in laser rangefinder, for hunting and observation. It combines a 12 µm thermal sensor, a low-light digital camera and a 905 nm laser. You see heat sources fused with the visible image and measure the distance to them up to 600 m, with one device.
Specifications
Specifications
| TM25-384 | TM35-384 | TM50-640 | |
|---|---|---|---|
| Thermal sensor | 384 × 288 | 384 × 288 | 640 × 512 |
| Thermal lens | 25 mm F1.0 | 35 mm F1.0 | 50 mm F1.2 |
| Magnification | 2.5–20× | 3.5–28× | 3–24× |
| Field of view | 10.5° × 7.9° | 7.5° × 5.7° | 8.8° × 7.0° |
| Weight (no battery) | 510 g | 510 g | 590 g |
| Thermal detector | 12 µm VOx, uncooled, 8–14 µm |
| Refresh rate | 50 Hz |
| Visible channel | 1/2" CMOS, 22 mm lens, 400–1000 nm |
| Laser rangefinder | Up to 600 m, ±1 m, 905 nm, Class 1 |
| Digital zoom | 1×, 2×, 4×, 8× |
| Display | 0.39" OLED, 1024 × 768, 50 Hz |
| Palettes | Black hot, White hot, Red hot, Fusion, Visible, Image fusion |
| Hot spot tracking | Yes |
| Scene modes | Jungle, Recognition |
| Recording | Photo and video |
| Storage | 16 GB built-in |
| Video output | CVBS via USB |
| Connectivity | Wi-Fi hotspot, AGM Connect app |
| Battery | 1 × removable 18650, up to 5 h (Wi-Fi and CVBS off), up to 3 h (on) |
| Power | USB-C, 5 V / 2 A, external power supported |
| Protection | IP67 |
| Operating temperature | -20 °C to +55 °C |
Compatible with
Compatible with
- AGM Connect app for live view and file transfer
- External USB-C power banks
In the box
In the box
- Fuzion LRF monocular
- 2 × 18650 rechargeable batteries
- Battery charger
- USB cable and EU plug
- Rubber eyepiece
- Lens cloth
- User manual
FAQ
FAQ
How far does the rangefinder measure?
Up to 600 m, with ±1 m accuracy. It uses a 905 nm Class 1 laser.
What is the difference with the Fuzion?
The Fuzion LRF adds the laser rangefinder. Thermal sensor, camera, display and recording are the same as on the AGM Fuzion.
How far can I see?
AGM lists an observation distance of 1,653 m for the TM35-384 and a detection range of 2,600 m for a 1.8 m target with the TM50-640.
How long does the battery last?
Up to 5 hours with Wi-Fi and video output off, or up to 3 hours with them on. Two removable 18650 batteries and a charger are included.
